Product Data Sheet · Laboratory Equipment

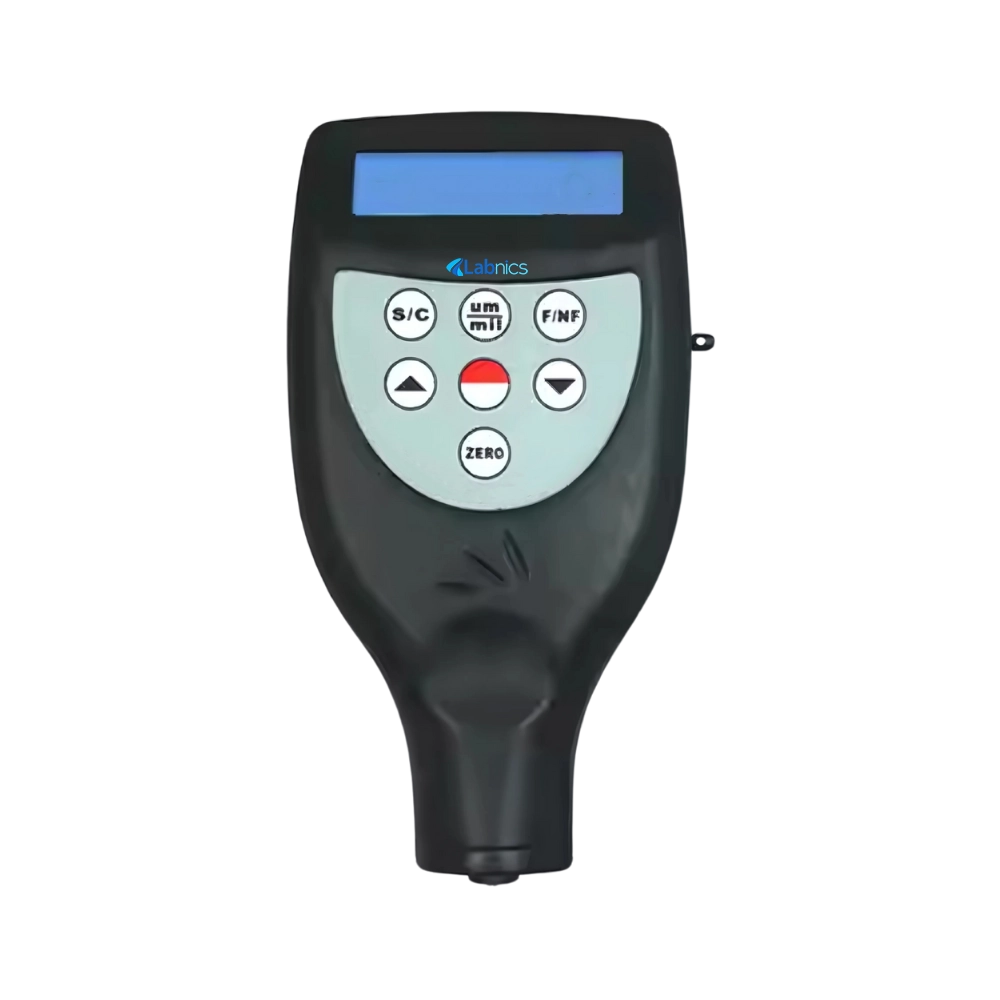

Coating Thickness Gauge NCTG-101 provides accurate readings with a measuring range of 0 to 1250 μm and a resolution of 0.1 μm. It features a compact structure for convenient handling and storage. This unit allows easy selection between metric and imperial measurement systems. It offers an integral type design for stable and consistent measurements. Our coating thickness gauge automatically stores calibration values for efficient operation.
| Measuring Range | 0 to 1250 μm / 0 to 50 mil |
|---|---|
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | NF Type Eddy Current |
| Minimum Radius Workpiece | 3 mm (convex)/ 50 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |
| Power Supply | 4 × 1.5V AAA (UM-4) Battery |
| Dimensions | 126 × 65 × 27 mm |
| Weight | 81 g |
NF type probe × 1 pc
NF Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
