Laboratory Equipment
Product Data Sheet · Laboratory Equipment

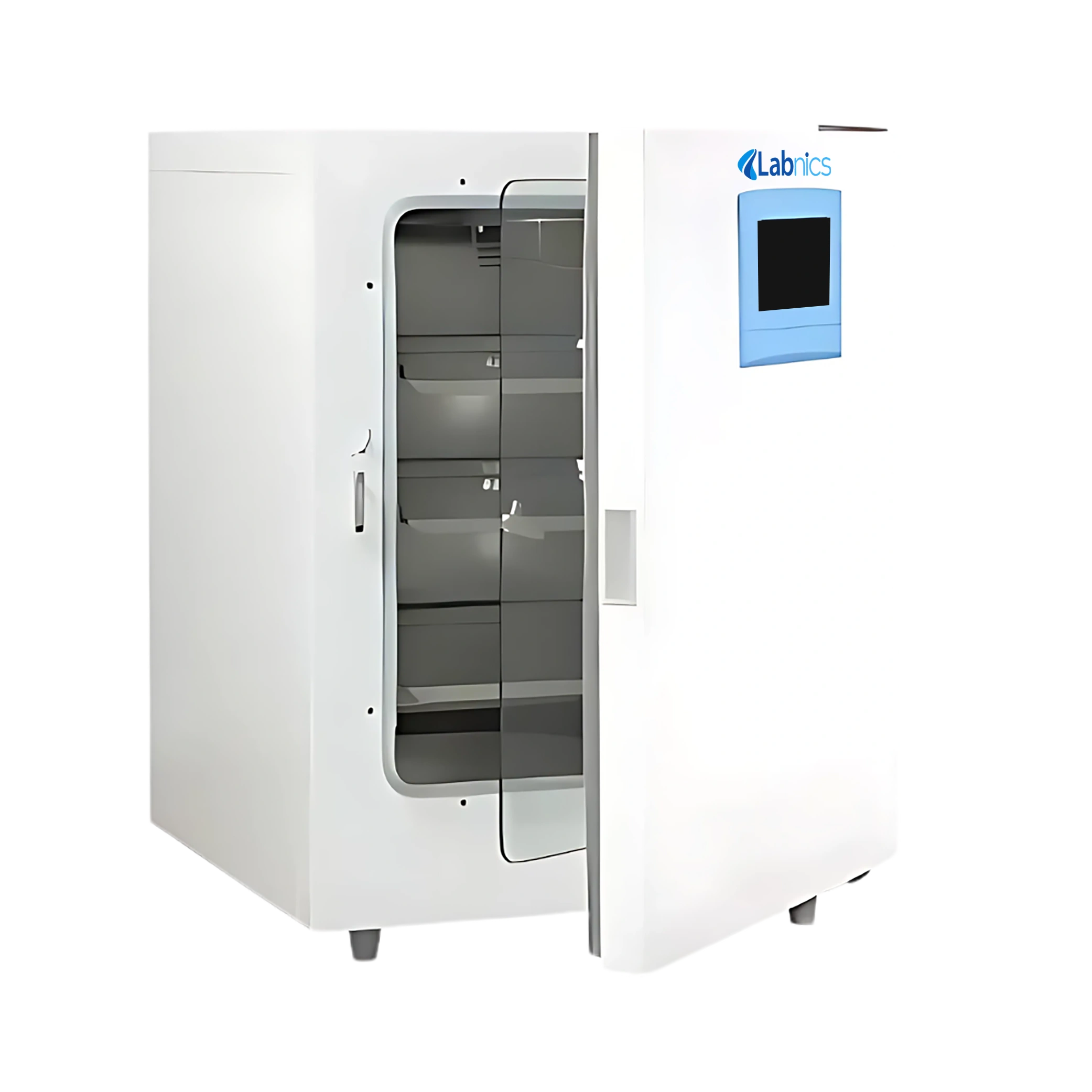

Air Jacketed CO2 Incubator NACI-603 features a 233L chamber with a temperature range of RT+5 to 55°C for reliable cell culture. This incubator features a 7-inch touch-screen for real-time data monitoring. Our unit ensures fast CO₂ recovery after door openings, maintaining stable internal conditions. It uses an air-jacketed heating system and maintains humidity through natural vaporization. It also ensures contamination control through moist heat disinfection.
| Volume | 233L |
|---|---|
| Temperature Range | RT+5 to 55℃ |
| Ambient Temperature | +5 to 30℃ |
| Temperature Stability | ±0.1℃ |
| CO2 Range | 0 to 20% V/V |
| CO2 Control Resolution | ±0.1%(IR sensor) |
| CO2 Recovery | (Door open 30s,recovery to 5%) ≤ 3min |
| Temperature Recovery | (Door open 30s,recovery to 37℃ ) ≤ 8min |
| Humidity Method | Natural vaporization≥90% |
| Heating Method | Air-jacketed, PID Control |
| Sterilization method | 90°C moist heat disinfection (18hrs)+UV Sterilizer |
| Screen | 7 inch Touch screen |
| Shelves | 3 |
| Power Consumption | 1000W |
| Voltage | 220V 50Hz |
| Internal Dimension (L×W×H) | 630×600×670 mm |
| External Dimension (L×W×H) | 840×790×940 mm |
| Gross Weight | 140 kg |
