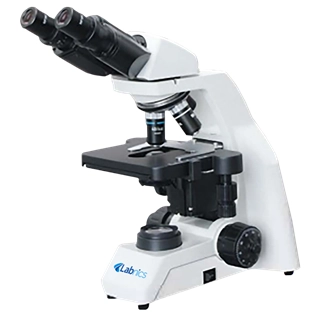

Biological Microscope NBM-103 Catalog

Biological Microscope NBM-103 is an optical instrument that aids in the visualization of microscopic biological entities that are invisible to the naked eye. It can determine the magnifying power of the combination of the two lenses by multiplying the magnifying power of the ocular by the magnifying power of the objective.

FEATURES

⇋ White LED lamp/halogen lamp illuminator
⇋ Mechanical double layer stage made of platinum with overhang
⇋ Wide field eyepiece
⇋ Dioptre adjustment on the left eyepiece
⇋ Rubber grip around fine and coarse adjust knob
⇋ Tension adjustment of coarse regulation knob
⇋ Upper limit stopper to protect the lens and the sample

SPECIFICATIONS

Viewing Head

Seidentopf binocular 30°

Stage

Rackless double layers mechanical stage 150 ×139 mm

Focusing System

Coaxial coarse and

Illumination

Halogen lamp 6v/20w

Eyepiece

EW 10X/20

Infinite semi-plan Achromatic Objective

4X N. A=O 1 WD=16

10X N A=0.25 WD=5.8

40X N A=0.65 WD=0.43

100X N A=1.25 WD=0.13

Fluorescent Attachment

Fluorescent illumination, 100W HBO lamp

Condenser

NA1.25 abbe condenser

Net weight

10 kg

APPLICATIONS

Biological Microscope is widely used for microscopic examination of biological specimens such as cells, pond life samples and other microscopic life forms.
