Laboratory Equipment
Product Data Sheet · Laboratory Equipment

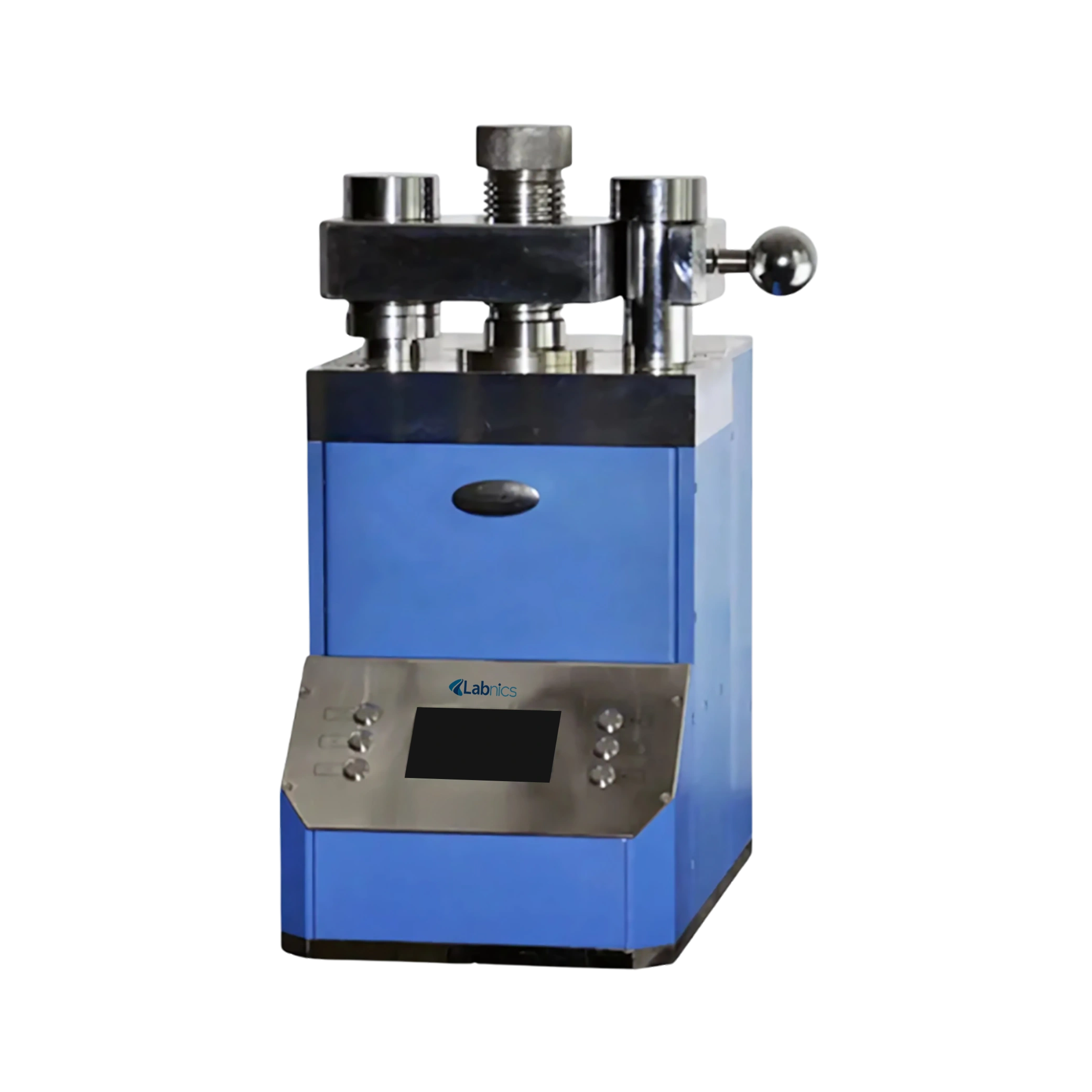

Automatic XRF Press NAXRF-102 is a motor-driven pellet press with a high-pressure range of 1-60 Ton. It features a pressure holding time of ≥1 second with no upper limit, ensuring uniform and compact pellets. This machine offers automated pressing cycles to reduce manual effort and improve productivity. It is equipped with an automatic operation system for efficient XRF sample preparation. Our model is built with enclosed pressing chamber which enhances safety and minimizes contamination.
| Pressure Range | 1 to 60.0 T |
|---|---|
| Pressure holding time | ≥1S (has no limit) |
| Pressurization process | Program pressurization-Program holding -Timed pressure release- Automatic Sample release |
| Intensity conversion | Automatic conversion of die pressure |
| LCD | 4.3” LCD Screen |
| Built-in mold | Boric acid / steel ring / plastic ring mold |
| Sample size | Sample size standard configuration 40m |
| Mold material | 440C mold steel |
| Demoulding method | Automatic release |
| Power Consumption | 550W |
| Power Supply | 110V, 60 Hz |
| Dimensions (L×W×H) | 300 × 520 × 580 mm |
| Weight | 180 kg |
