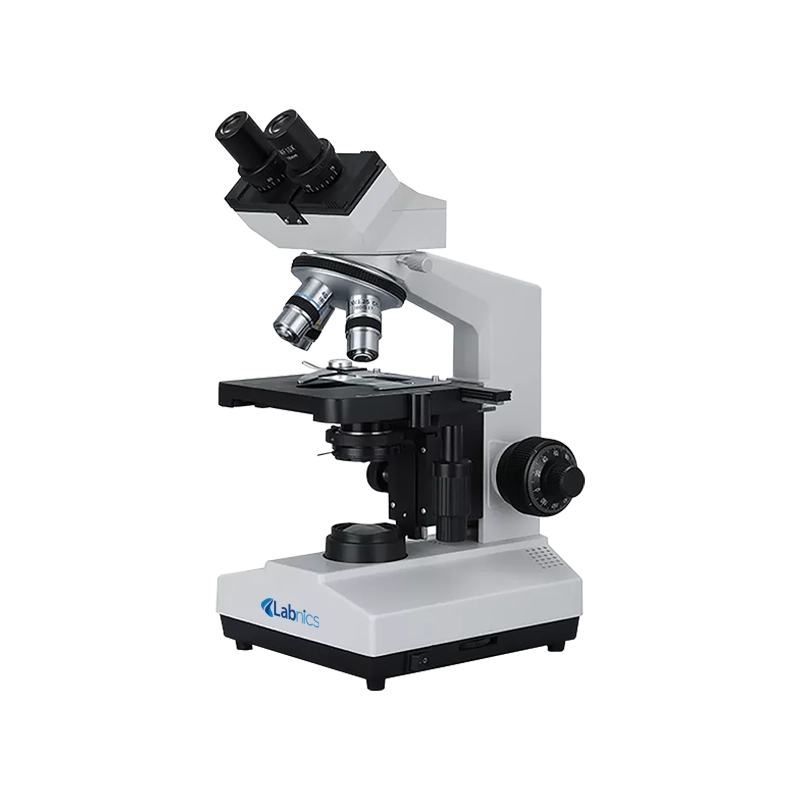

Biological Microscope NBM-100
Biological Microscope NBM-100 is an optical instrument that aids in the visualization of microscopic biological entities that are invisible to the naked eye. It is a bright field, LED ergonomic microscope designed to visualize various biological specimens with precise focusing system. It features a coaxial positioning system and a coarse/fine adjustment knob that enables observations of microscopic fields in high resolution.
Viewing head | Horizontal 45° inclined binocular | ||
Eyepiece | Wide Field Eyepiece WF10×, WF16×(Optional) | ||
Objective | Achromatic Objective 4×, 10×, 40×(S)100×(S, Oil) ; | ||
Nosepiece | Quadruple Nosepiece | ||
Stage | Double layers moving stage 140×140mm; Moving range 75×50mm | ||
Focusing | Coaxial Coarse & Fine Focus Adjustment System, Focusing range 28mm,Fine focusing scale value 0.002mm | ||
condenser | ABBE Condenser: N.A 1.25 | ||
illumination |
|
||
Gross weight | 6kg |
Biological Microscope NBM-100 is widely used for microscopic examination of biological specimens, test samples in healthcare and research organizations, industries, agriculture and biotechnological laboratories, food processing and developmental research studies, etc.
Labnics Biological Microscope feature trinocular and binocular viewing heads for flexible operation. They include interpupillary distance adjustment for optimal eye alignment and comfort. Our microscopes are equipped with achromatic objectives to enhance image clarity. These units come with wide field eyepieces for an expansive and clear view of the microscopic field. They offer precise focusing with coarse and fine adjustment knobs for detailed observations.
Magnification | 1-600X continual zoom |
Pixel | HD 3.6 MP |
Mechanical Stage | Double Layers Mechanical Stage , Fine Division 0.1mm |
Illumination | LED Lamp |
Magnification | Up to 330X (3x digital magnification output to 27-inch HDMI display) |
Image Sensor | 4MP HD Sensor |
Photo Resolution | Up to 24M (5600×4200) |
Photo Format | JPG |
Optical System | Plan Achromatic optical system |
Observation | Fluorescence |
Light source | 6V/20W halogen lamp |
Viewing tube | Trinocular, 30° inclined, 360°rotating |
Optical System | Infinity Plan achromatic optical system |
Observation | Fluorescence and bright field |
Light source | 6V/30W halogen lamp |
Viewing tube | Trinocular, Siedentopf type head, 30° inclined, 360°rotation |
Optical System | Infinity plan achromatic optical system |
Observation | Bright field, Phase contrast, Fluorescence |
Filter cube | 2-positional filter cubes |
Light source | For fluorescence illumination: 100W Mercury lamp; For transmitted illumination: 6V/30W halogen lamp |
Optical System | Infinity plan achromatic optical system |
Observation | Bright field, Phase contrast, Fluorescence |
Filter cube | 4-positional filter cubes |
Light source | For fluorescence illumination: 100W Mercury lamp; For transmitted illumination: 6V/30W halogen lamp |
Flat field eyepiece | Wide field of vision WF10X( Φ 22mm) |
Long distance flat field objective | Infinite PLL5X/0.12, 10X/0.25, 20X/0.40, 50X/0.70, 80X/0.80 |
Total magnification | 50X-800X |
Observation head | Three eyes, hinged 30 ° tilt, 360 ° rotation |
Objective | Achromatic: 10X/0.25 N.A./7.3mm<br/> Plan: 40X/0.65 N.A./0.5mm |
Eyepiece | 10X/Φ18mm<br/> 12.5X/Φ13mm |
Total Magnification | 40X, 50X, 100X, 125X, 400X, 500X |
Mechanical Tube Length | 160mm |
Optical System | Plan Achromatic optical system |
Observation | Phase contrast |
Viewing Head | Binocular/Trinocular head, 30° incling, 360°rotating |
Objectives | PH4X/0.1,PH10X/0.25,PH40X/0.65 ,PH100X/1.25 |
Optical System | Plan Achramatic optical system |
Viewing Tube | Binocular/Trinocular, 30° inclined, 360°rotating |
IPD adjustment | 54mm ~ 75mm |
Dioptre adjustment | ±5 dioptres |
Objective | 0.7X-4.5X |
Eyepiece | Wide field Plan-scope Eyepiece: WF10X/20mm |
Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined, 360°Rotatable |
Working Distance | 100mm |
Objective | Grouped Form Any Two Objectives of 1X,2X,3X,4X, Working distance:100mm, 2X-81mm,3X-61mm, 4X-57mm |
Eyepiece | Wide field Plan-scope Eyepiece: WF10X/18mm (a Pair), with a Diotor Adaptor on the Left Eyepiece Tube |
Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined, 360°Rotatable |
Magnification | 10X-20X, or 10X-30X, or 10X-40X, or 20X-40X |
Optical System | Zoom achromatic objective stereo optical system |
Viewing Head | View tube Binocular, Hinge inclination 45 °, rotating 90° |
IPD adjustment | 55mm ~ 75mm |
Zoom ratio | 0.04587962962963 |
Objective | Grouped Form Any Two Objectives of 1X,2X,3X,4X, Working distance:1X-55mm, 2X-81mm,3X-61mm, 4X-57mm |
Eyepiece | Wide field Plan-scope Eyepiece: WF10X/18mm |
Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined |
Condenser | ABBE Condenser: N.A.1.25; Φ2-Φ30mm Iris Diaphragm and Φ32 Filter |
Viewing head | Trinocular view head inclined at 45° Digital view head inclined at 45° |
Eyepiece | High point wide field adjustable eyepiece WF10X20mm |
Zoom objective | 0.67X to 4.5X |
Zoom ratio | 6.7:1 |
Optical System | Achromatic Optical System |
Head | Trinocular, 30°inclined position |
Interpupillary adjustment | 52 to 75mm |
Diopter adjustment | ± 5 diopters |
Optical system | Infinite optical system |
Viewing Head | Compensation Free Trinocular Head, Inclined at 30° (50mm to70mm)<br/> 2-Binocular head, interpupillary distance, adjustable 50mm to 75mm |
Eyepiece | Plan WF10X/22m |
Focusing | Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm |
