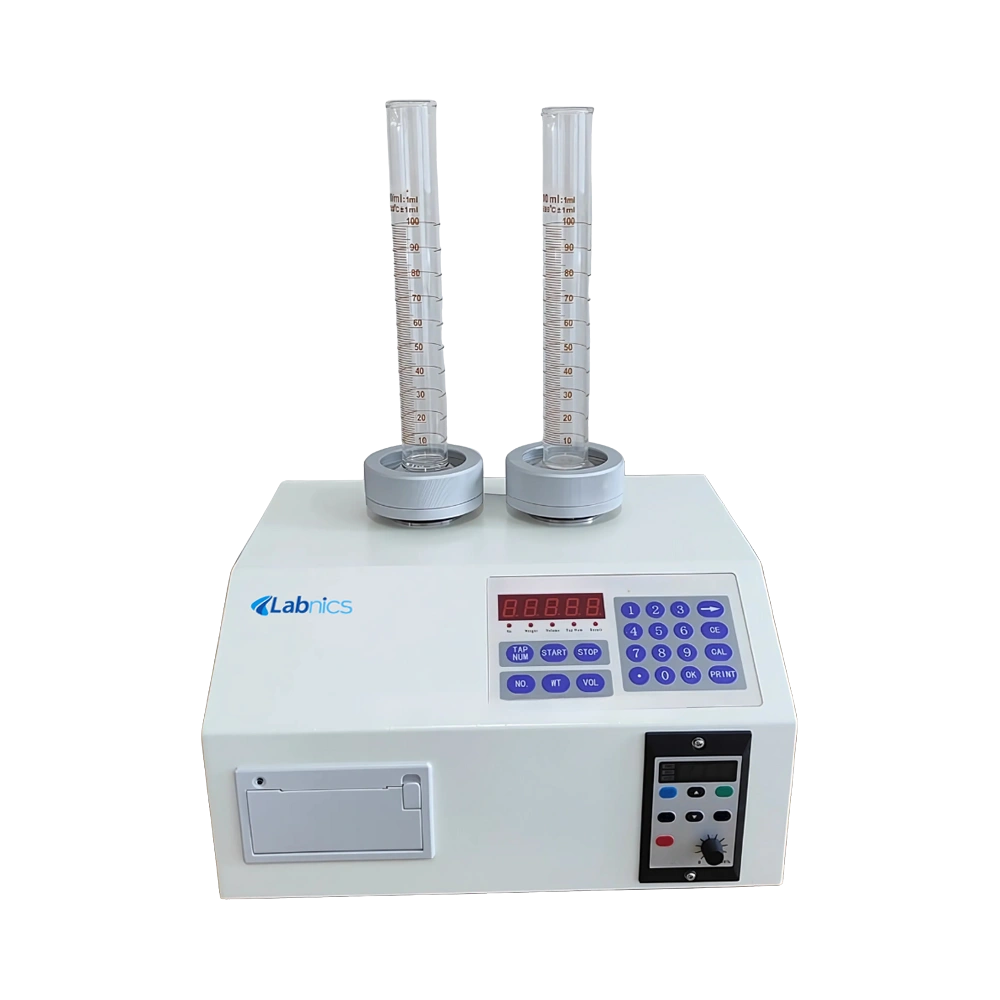

Tap Density Tester NTDT-102
Tap Density Tester NTDT-102 is a compact microprocessor-controlled unit, comes with sample volume of ≤ 250 ml and ≤ 500 g sample weight. Offers easily modifiable speed control with maximum 300 rpm speed and 0.86 N. m motor torque. Features automatic storage of test results. Designed with intuitive LED and membrane working panel, adjustable drop height, and plastic-coated exterior that is sturdy and corrosion-resistant. Has integrated micro printer, and extended working life.
Work Station | 1 |
Sample Volume | ≤ 250 ml |
Sample Weight | ≤ 500 g |
Number of Tapping | 0 to 99999 times (set 0 to output bulk density) |
Frequency | Maximum 300 Rpm (0 to 300 rounds per minute, adjustable) |
Amplitude | Maximum 15 mm (1 mm to 15 mm, adjustable) |
Display | LED display |
Repeatability | ≤ 1% |
Accuracy | ≤ 1% |
Motor Torque | 0.86 N. m |
Power | 40 W |
Power Supply | 220 V, 50/60 Hz |
Tap Density Tester NTDT-102 is a compact microprocessor-controlled unit, comes with sample volume of ≤ 250 ml and ≤ 500 g sample weight. Offers easily modifiable speed control with maximum 300 rpm speed and 0.86 N. m motor torque. Features automatic storage of test results. Designed with intuitive LED and membrane working panel, adjustable drop height, and plastic-coated exterior that is sturdy and corrosion-resistant. Has integrated micro printer, and extended working life.
Labnics Tap Density Testers are microprocessor-controlled, ensuring stable operation with user-friendly functionality. They feature an adjustable drop height, offering flexibility to accommodate different testing standards. These units feature LED displays that provide clear and user-friendly monitoring for easy operation. They include an integrated micro printer to easily print test results and data. Our density meters are easy to clean, offering anti-corrosive properties and lasting durability.
Labnics Liquid Density Meter features a flexible density range for accurate measurement of diverse liquid samples. They include an automatic calibration mode for reliable performance. Our units are equipped with a user-friendly LCD for effortless monitoring. They facilitate easy data processing and connectivity with external devices. These meters offer the capability to store data for efficient tracking and analysis.
Capacity | 0.005 to 300 g |
Density Resolution | 0.001 g/cm<sup>3</sup> |
Density Range | 0.001 to 99.999 g/ cm<sup>3</sup> |
Temperature Range | Normal to 100 °C |
Measuring range | 0 to 1.9999g/cm³ |
Accuracy | 0.0005 g/cm³ |
Sampling capacity | 2 ml/time |
Density range | Flowable liquid below 2 g/cm³ |
Labnics Solid Density Meter offers a wide density range to accommodate various materials. They include user-friendly calibration features for enhanced accuracy. These units are designed with an LCD for convenient monitoring of measurements. They come with data storage capabilities, allowing users to record and manage measurement results efficiently. Our Solid Density meters support a wide temperature range, ensuring versatility across different testing needs.
Capacity | 0.005-300 g |
Density resolution | 0.001 g/cm<sup>3</sup> |
Density range | 0.001 to 99.999 g/ cm<sup>3</sup> |
Measuring time | About 5s |
Labnics Fork Density Meters are designed for precise measurements, ensuring reliable data. They offer temperature compensation that automatically adjusts for temperature variations to maintain accuracy. These units are built with corrosion-resistant materials for enhanced durability. They provide quick calibration, allowing for easy and rapid adjustments to ensure consistent performance. Our density meters also feature password access for improved security and user control.
Density Range | 500 to 2500 Kg/ m3 |
Calibration Range | 800 to 1200 Kg/ m3 |
Accuracy | ± 1 Kg/ m3 / ± 2 Kg/ m3 |
Repeatability | ± 0.2 Kg/ m3 |
Measurement range | 0 to 3000 kg/m3 (0 to 3g/cm3) |
Accuracy | 0.001g /cc (±1 kg/m3) |
Viscosity | 0 to 20000 cP |
Signal Output | 4 to 20 mA signal 4 wire(2 wires 24VDC, 2 wires 4 to 20mA) + RS485 |
