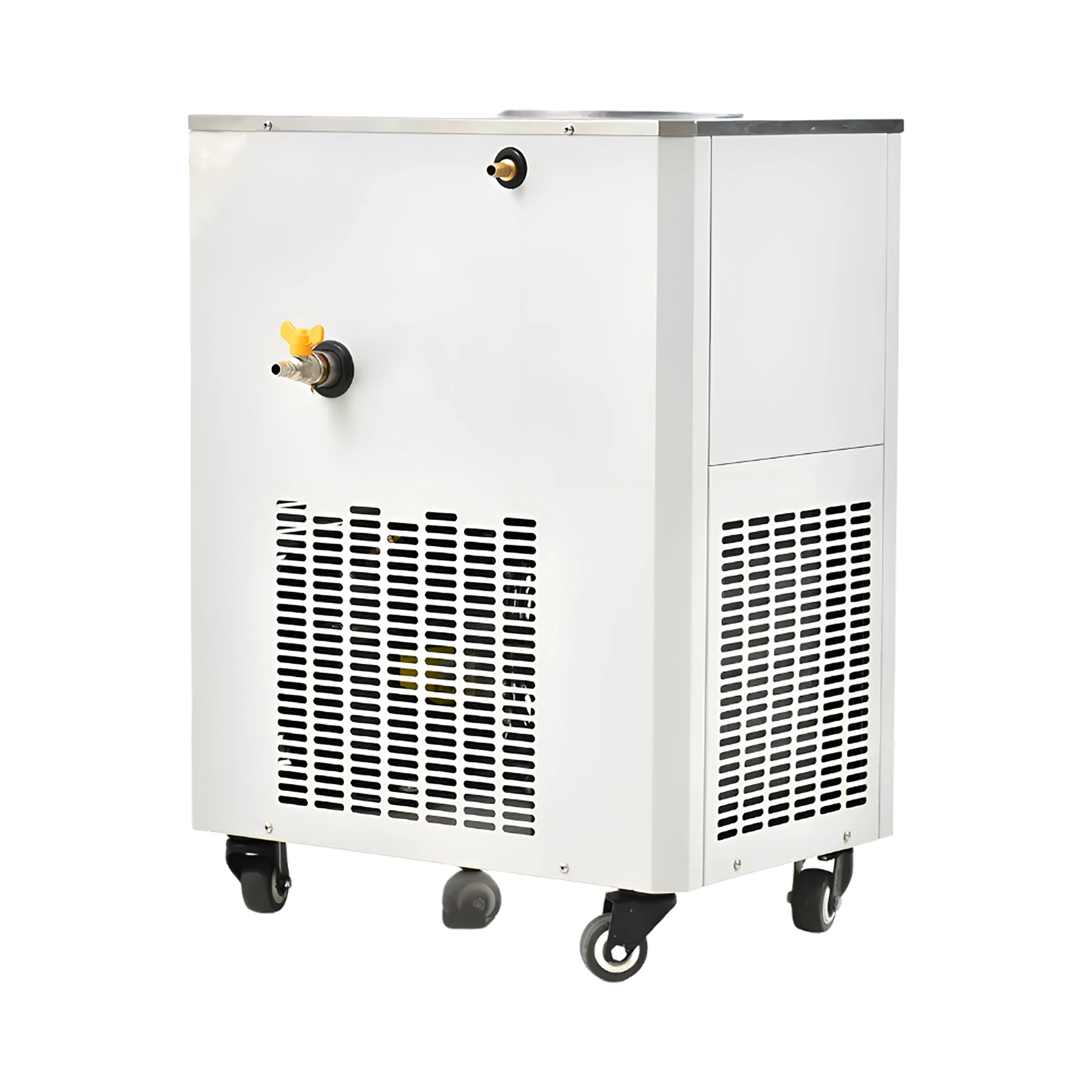

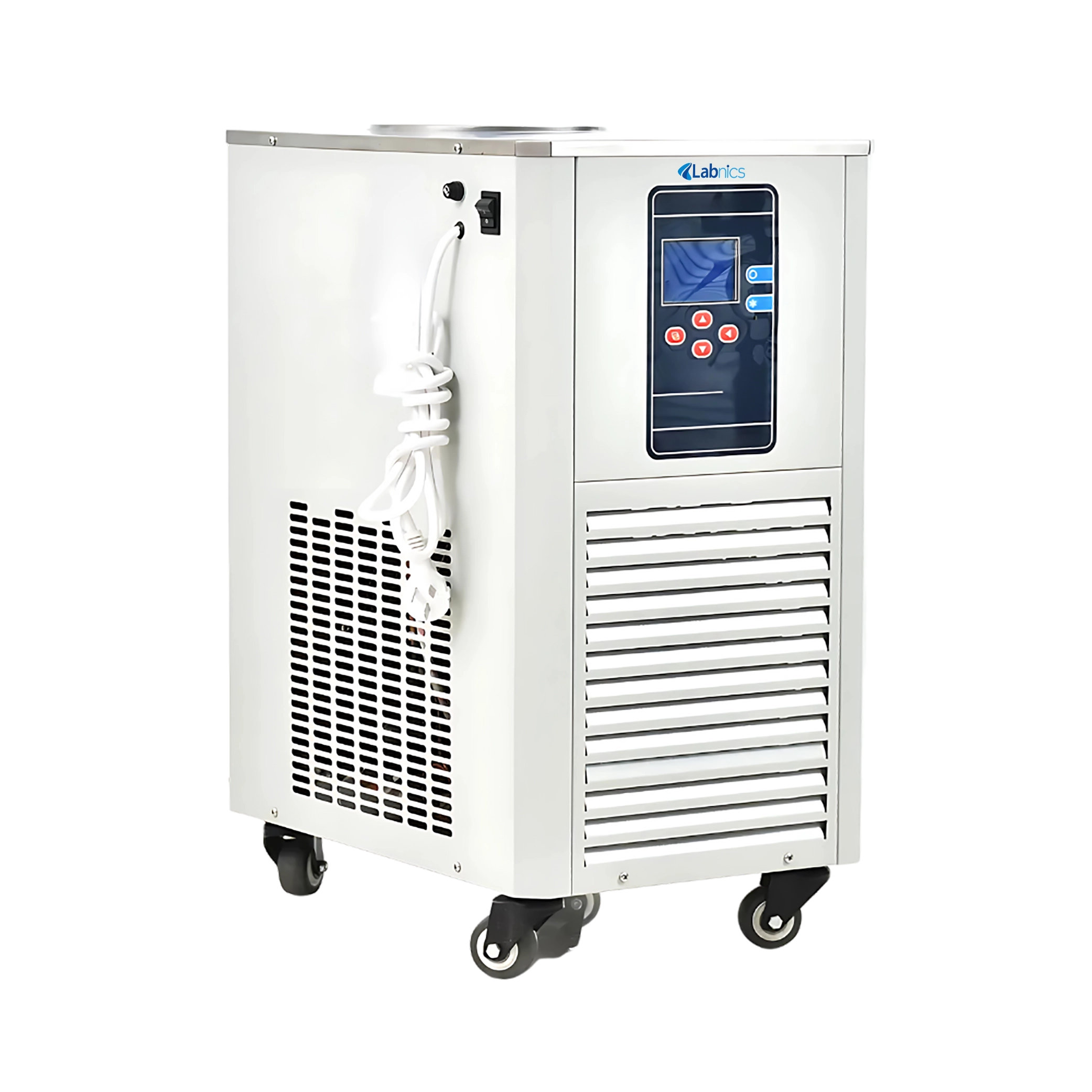

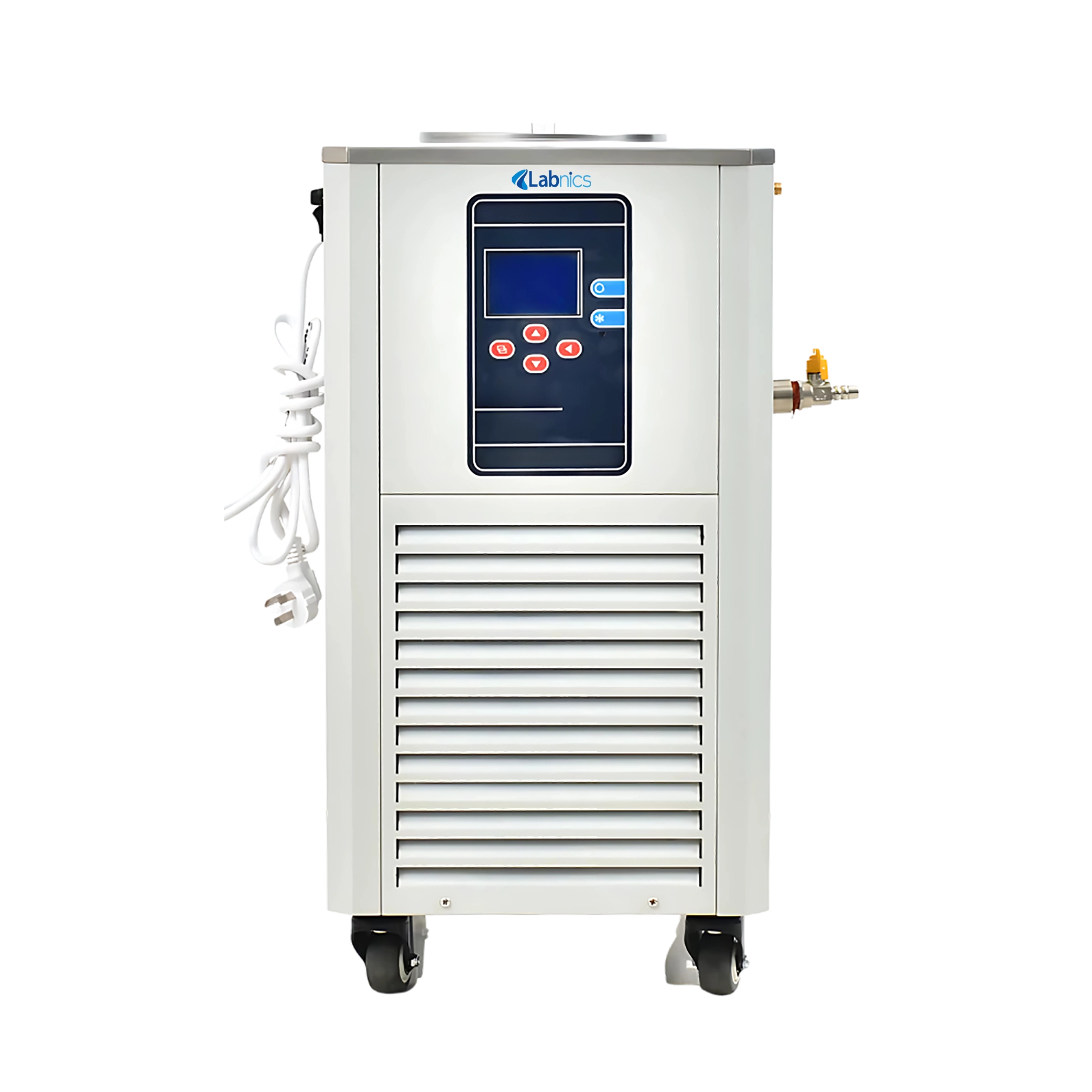

Recirculating Water Chiller Bath NRWC-401 provides a flow rate of 25 L/min and a lift capacity of 6 m. It utilizes PID control to maintain steady and precise temperature conditions. This chiller offers overcurrent and leakage protection for safe and reliable operation. It has a compact design for efficient use of space and easy placement. Our unit is equipped with fluorine-free refrigerants to ensure eco-friendly and sustainable cooling.
$3,400.00
Specifications
| Capacity | 20 L |
| Temperature Range | -30°C to RT |
| Temperature Accuracy | ±0.5°C |
| Cooling Capacity | 2800 W (25°C), 2300 W (0°C), 600 W (-30°C) |
| Temperature Sensor | PT100 |
| Refrigerant | R404A |
| Evaporator Type | Internally threaded copper pipe |
| Circulation Pipe Size | G1/2, OD14 mm |
| Fan Type | Outer Rotor Axial Fan |
| Cooling Type | Air-cooled |
| Lift Capacity | 6 m |
| Flow Rate | 25 L/min |
| Current | 5.1 A |
| Compressor Power | 1.125 kW |
| Power consumption | 1.3 kW |
| Power Supply | 220V, 50/60Hz |
| Dimensions | 570 × 490 × 840 mm |
| Weight | 71 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Water Chiller Bath NRWC-401
1: What type of refrigerant does the Recirculating Water Chiller Bath use?
The Recirculating Water Chiller Bath uses fluorine-free, environmentally friendly refrigerants, providing an efficient and eco-friendly cooling solution.
2: How easy is it to maintain and clean the Recirculating Water Chiller Bath NRWC-401?
The Recirculating Water Chiller Bath features removable side panels with ventilation meshes, allowing easy access for cleaning. The condenser is also easy to clean, ensuring efficient operation and ease of maintenance.
3: What is the role of the circulation pump in the Recirculating Water Chiller Bath?
The stainless steel vortex pump provides low heat generation and offers customizable flow and head to meet the needs of different applications.
4: What makes the Recirculating Water Chiller Bath durable and long-lasting?
The chiller’s construction with 304 stainless steel, along with high-quality compressors and components, ensures long-lasting durability and resistance to corrosion over time.
5: Does the Recirculating Water Chiller Bath NRWC-401 require constant monitoring?
The Recirculating Water Chiller Bath is built for stable operation with minimal supervision, supported by reliable temperature control and safety features like leakage protection and overcurrent safeguards.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
