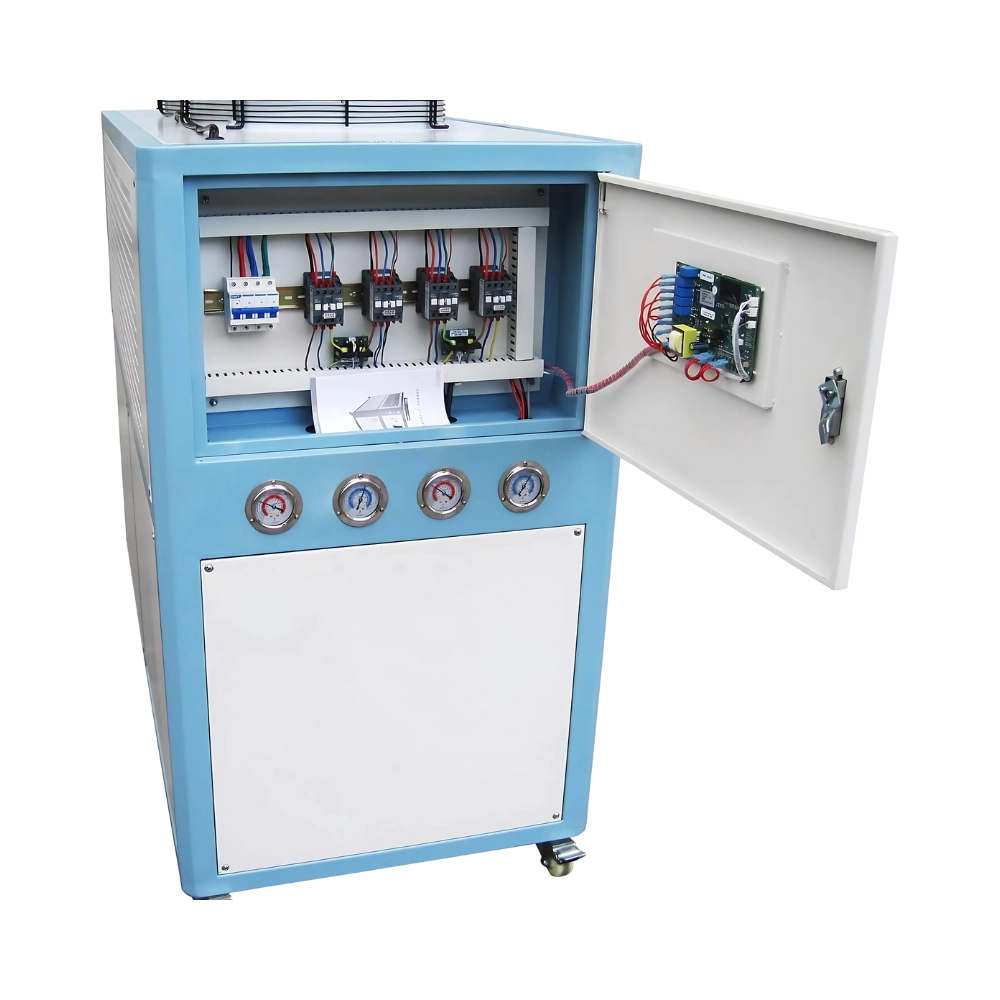

Industrial Circulation Chiller NICC-101

Industrial Circulation Chiller NICC-101 is air-cooled chilling absorb heat from process water, which is then transferred to the air present around the chiller unit. Equipped with one of the best compressors, it guarantees precise and high-quality thermoregulation for industrial processes. It is an ideal equipment when dealing with critical applications that require large-batch process cooling and steady, reliable operation with a dependable investment.

---

$5,100.00

Buy Now Catalog

Specifications

Cooling capacity	24 kW
Water tank capacity	145 L
Temperature range	5°C – 35°C
Refrigerant	R407C
Compressor type	Scroll compressor
Compressor power	8 HP
Condenser type	Finned copper tube
Cooling air flow	11160 m3/h
Rotor fan	0.24 kW × 2
Water pump power	2 HP
Pump flow	250 L/min
Pump pressure	1.5 kg/cm2
Pump lift	16 m
Rated power	2000 W
Power supply	380 V /3PH / 50 HZ
Dimension (L × W × H)	1500 × 730 × 1400 mm
Weight	350 kg

Features

• 2.0mm thick baked varnish surface coating
• Equipped with high/low pressure gauge and stainless-steel circulation pump
• Protection against overheating, overload, water level and multiple phase sequence for operational safety
• Anti-freezing protection

Applications

• Used in industrial processes dealing with plastic processing, rubber processing, laser cutting and beverage industry.
