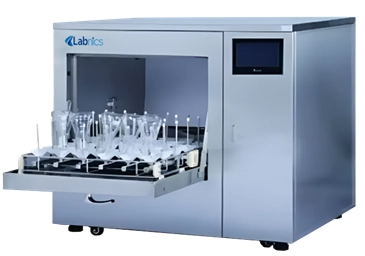

Automatic Glassware Washer NAGW-100

Automatic Glassware Washer NAGW-100

Automatic Glassware Washer NAGW-100

Automatic Glassware Washer NAGW-100 is designed with high efficiency cleaning system and optimized spray arm and nozzles with self-cleaning program. The unit has rapid and efficient drying system. Integrated with PLC touch screen control and reinforced glass window. Equipped with corrosion resistant stainless-steel interior and exterior. Features with electronic security door lock and emergency switch.

Specifications

Capacity 120 L
Water Consumption/Cycle 15 L
Inlet Water Pressure 0.3 to 0.8 Mpa
Noise ≤50 dB
External &Internal Material Stainless steel
Overall Power Consumption 6
Power Consumption-Water Washing 0.75
Power Consumption-Water Heating 5
Power Consumption-Drying 2.1 KW
Cleaning Racks 1 pcs
Power Supply AC220V, 50/60Hz
Washer Chamber Size (W × D × H) 600 × 629 × 465 mm
External Size (W × D × H) 980 × 740 × 870 mm
Packing Size (W × D × H) 1080 × 990 × 1065 mm
Gross Weight  150 Kg

Features

  • High efficiency cleaning system
  • Optimized spray arm and nozzles with self-cleaning program
  • Rapid and efficient drying system, designed with independent air heater and HEPA filter
  • Corrosion resistant stainless-steel interior and exterior
  • Reinforced glass window to achieve a clear view on washing process
  • PLC touch screen control with preset 6 programs
  • Electronic security door lock to prevent unexpected door opening
  • Water and drying temperature dual control
  • Equipped with emergency switch

Applications

Automatic Glassware Washer is commonly used in laboratories that require bulk cleaning and disinfecting of glassware such as microbiological labs, pathology labs, pharmaceutical labs, etc.

Optional Accessories

USB interface
printer
Cleaning racks
