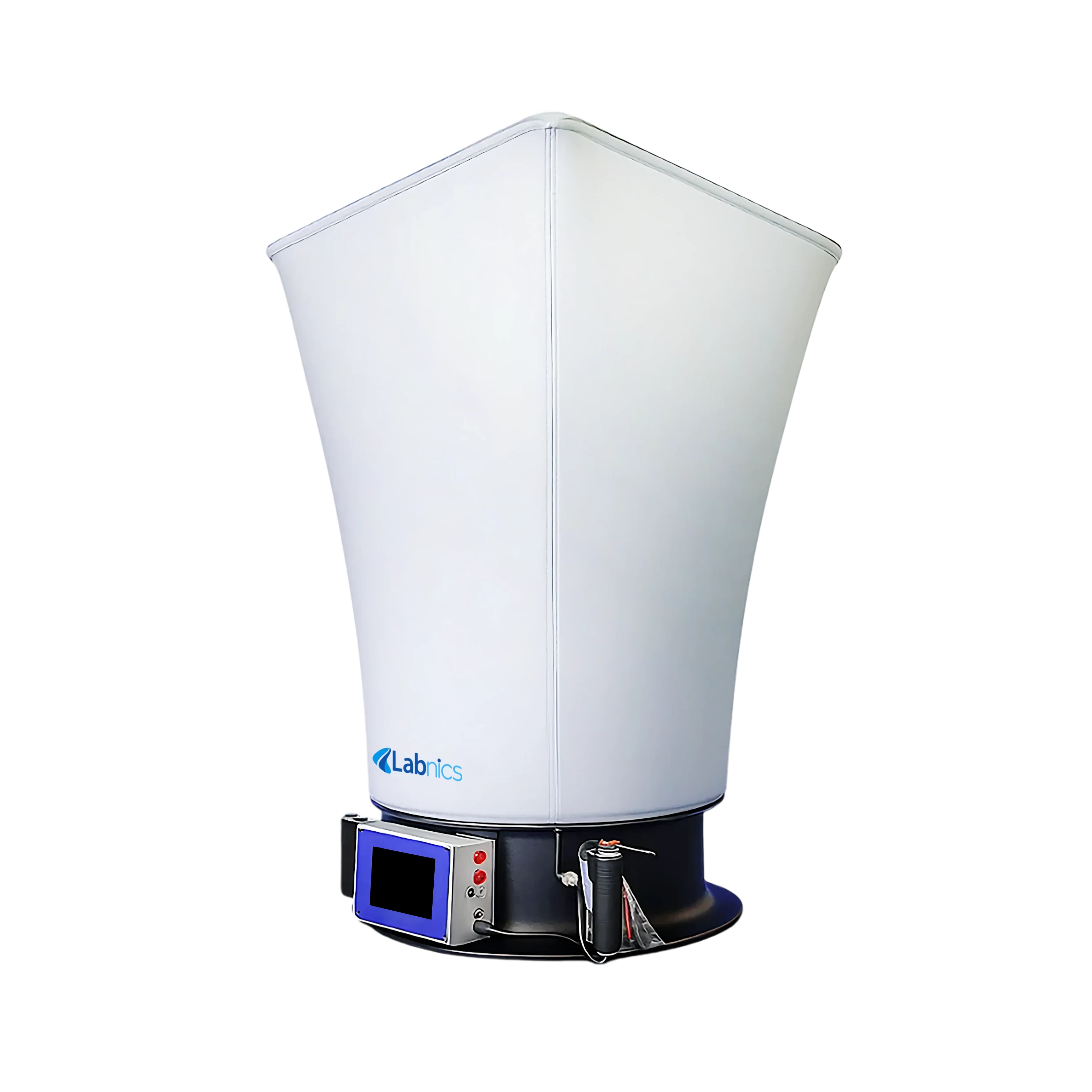

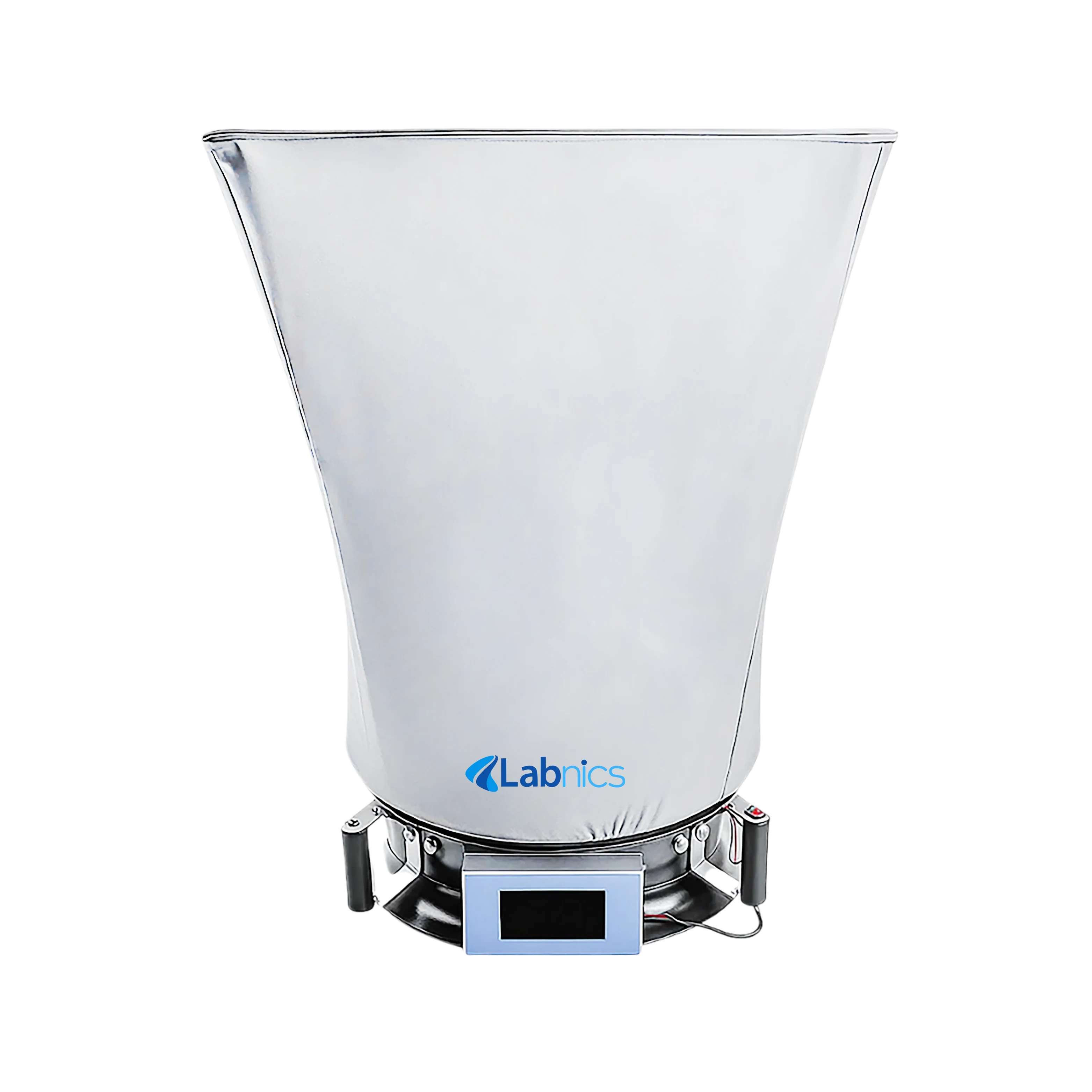

Air Flow Capture Hood NACH-200 is an apparatus which enables measurement of crucial physical parameters like humidity, temperature, air flow pressure and etc of an area. The detachable micro-meter along with a nylon cloth cover can be placed below the air conditioning unit or air purifying unit to monitor the parameters with help of a support rod. It is equipped with data acquisition software to evaluate the memory to comply the Cleanroom or GMP guidelines.
$4,063.00
Specifications
| Measuring Range | 100 to 3500 m3 h |
| Response Time | 2 to 8 seconds |
| Relative Error | ±5 % F.S |
| Temperature Range | 5 °C to 35 °C |
| Relative Humidity | Humidity resolution 0.1 % RH 6 |
| Accuracy | ±0.5 % |
| Power Supply | AC 220 V± 10 %50 Hz ± 2 Hz |
| Manometer diameter | ϕ 480 mm |
| Overall Weight | 4.1 kg |
Features
Applications
Standard Accessories
| Accessories No | Name |
| 1 | Wind cover 570 x 570 mm one set 830 x 830 mm |
| 2 | Battery and Charger |
| 3 | Adjustable Bracket |
| 4 | Built-out Printer |
Ask Expert
FAQ for Air Flow Capture Hood NACH-200
1: Why should the Air Flow Capture Hood NACH-200 be placed below air conditioning or air purifying units?
The Air Flow Capture Hood NACH-200 is specifically designed to measure airflow, temperature, humidity, and pressure directly at the output of HVAC or purification systems. Placing it beneath these units ensures accurate and localized readings essential for system evaluation.
2: How does the Air Flow Capture Hood NACH-200 support Cleanroom and GMP compliance?
This Air Flow Capture Hood NACH-200 includes built-in data acquisition software that allows secure data storage and analysis. This capability supports environmental monitoring and documentation required for Cleanroom and GMP standards.
3: Can the Air Flow Capture Hood NACH-200 be used for extended periods without external power?
Yes, the Air Flow Capture Hood NACH-200 is equipped with built-in rechargeable batteries that provide up to 30 hours of continuous operation, making it ideal for long-duration testing tasks.
4: What type of display does the Air Flow Capture Hood NACH-200 offer?
Our Air Flow Capture Hood NACH-200 comes with a large touch screen LCD display that provides clear visibility of measured parameters and easy navigation of functions during use.
5: What should I do if the Air Flow Capture Hood NACH-200 does not register airflow correctly?
If the Air Flow Capture Hood NACH-200 is not detecting airflow, ensure that the nylon wind cover is properly secured, the anemometer is correctly adjusted using the fixed helix, and the hood is aligned directly below the airflow outlet. Also, confirm that the battery is charged and the support rod is stable.
6: Can the Air Flow Capture Hood retain data after it is turned off?
Yes, the Air Flow Capture Hood has built-in memory retention that preserves all recorded data even after the device is powered off. This feature ensures users do not lose critical measurements and can easily access them later for analysis or reporting.
7: How should the Air Flow Capture Hood be positioned for accurate airflow detection?
To ensure accurate airflow measurement, the Air Flow Capture Hood should be placed directly under an air outlet using the adjustable lifting rod and detachable micrometer. The nylon wind cover helps capture airflow efficiently by creating a secure enclosure over the outlet.
8: What should I do if the Air Flow Capture Hood shows inconsistent airflow readings?
Check that the wind cover is properly sealed and that the hood is evenly aligned with the air outlet. Make sure the anemometer is correctly adjusted and free from obstruction. Also, verify the unit is placed on a stable surface using the lifting rod for proper support.
9: What display and connectivity options are available in the Air Flow Capture Hood?
The device features a user-friendly large touch screen LCD that displays real-time data clearly. It also includes USB and printer interfaces, allowing users to transfer digital records or print results directly during field assessments.
Labnics Air Flow Capture Hoods feature a fixed helix mechanism for precise anemometer adjustment. They offer a large touchscreen display for intuitive control. These units are equipped with data acquisition software for efficient monitoring and analysis. They include built-in batteries to ensure long-lasting and uninterrupted use. Our capture hoods provide USB and printer interfaces for seamless data transfer and documentation.
