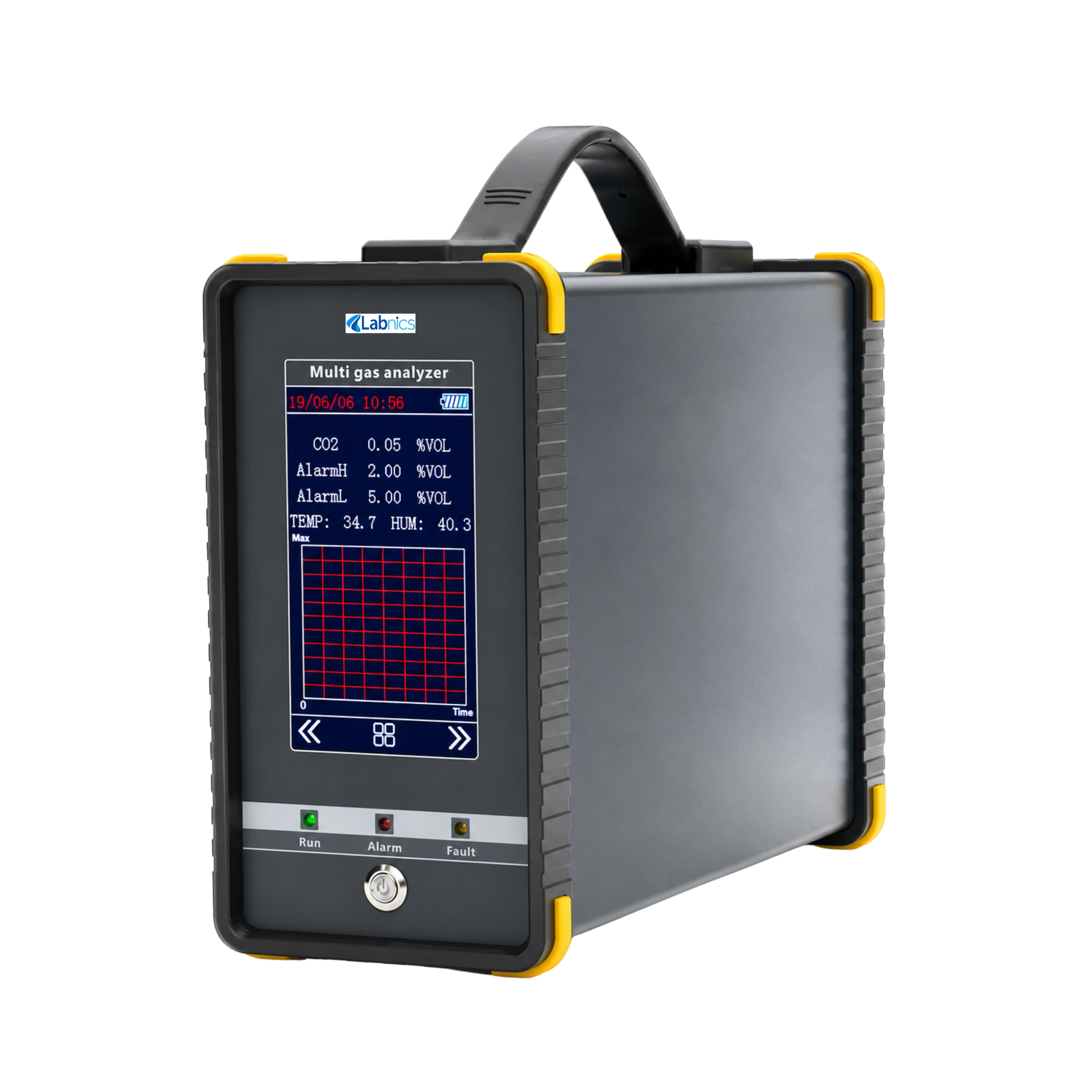

MULTI-GAS ANALYZER NMA-260

Multi-gas Analyzer NMA-260 is a pump-suction analyser designed for measurement, analysis, monitoring and gas detection in closed space. Equipped with Catalytic / Electrochemical / PID / Infrared system and probe, it can detect up to 12 different kinds of gas at a single time. Designed to be compact, it requires minimal cabinet space and can be easily integrated into other systems, helping to reduce installation costs. Such analysers are ideal for workplaces that deal with environmental compliance, process monitoring, gas turbine and automotive emissions and research labs.

FEATURES

⇋ High-resolution touch LCD screen
⇋ Adjustable range
⇋ Fast warm-up and fast response time
⇋ Can measure flue gas concentration at temperatures upto 800Â°C
⇋ Supports simultaneous detection of 8-12 gas, customization available

SPECIFICATIONS

Sensor	Catalytic/Electrochemical/PID/Infrared
Sampling method	Built-in pumping
Detection range	H2S, CO, O2, SO2, CO2, Cl2, NH3, NO2, O3, HCN, PID (VOCs) and combustibles, TVOCs
Operating humidity	15 % to 90 % RH
Operating temperature	-20°C to 80°C
Linear error	< ± 2FS
Repeatability error	< ±2%
Charging time	< 10 hours
Battery life ( rechargeable )	+ 15 hours
Response time	< 120 sec
Alarm system	Audio and visual alarm
Probe material	SS304 stainless steel
Probe length	500 mm
Hose length	2 meters
Body material	Aluminium alloy
Power supply	3.6 V and 7.2 V Li rechargeable battery or AC 110/220V powered
Dimensions ( L × W × H )	293 × 110 × 210 mm
Weight	4.75 kg

APPLICATIONS

Analysers are widely employed in industries dealing petroleum, chemical, pharmaceutical, environmental protection and air pollution.
