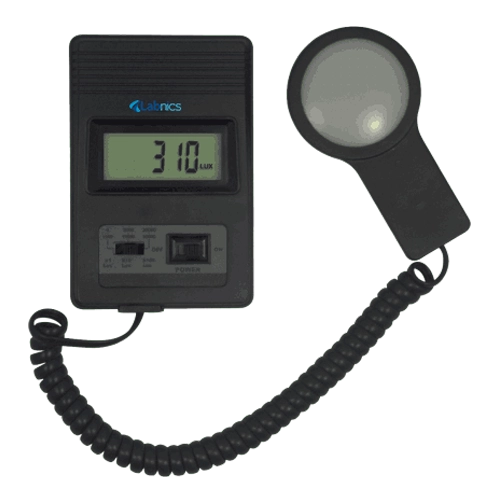

Lux Meter NLXM-202 is a handheld unit designed for measurement of luminosity and brightness in Lux. It is equipped with probe attached to unit via spiral cord and separate light sensor for optimum position readings. Measurement ranges into 3 grades X1, X10 and X100 with LCD display assures accurate reading without any manual error. It is used for laboratories as well as on-field measurement of light and luminosity.
X1 Grade range 1 | NIL |
X1 Grade resolution 1 | NIL |
X1 Grade range 2 | 0 to 1,999 Lux |
X1 Grade resolution 2 | 1 Lux |
X10 Grade range | 2,000 to 19,999 Lux |
X10 Grade resolution | 10 Lux |
X100 Grade range | 20,000 to 50,000 Lux |
X100 Grade resolution | 100 Lux |
Foot candle range | NIL |
Foot candle resolution | NIL |
Accuracy | ± (5%n + 5d) |
Temperature | 0 to 50°C (32 to 122°F) |
Humidity | ˂ 80 % RH |
Main unit | 108 × 72 × 23 mm |
Sensor | 58 mm |
Power Supply | 1 × 9V 6F22 |
Weight | 208 g |
Accessories no. | Name | unit |
1 | Split type sensor | 1 |
2 | Carrying case | 1 |
