Automatic Glassware Washer NAGW-104 Catalog

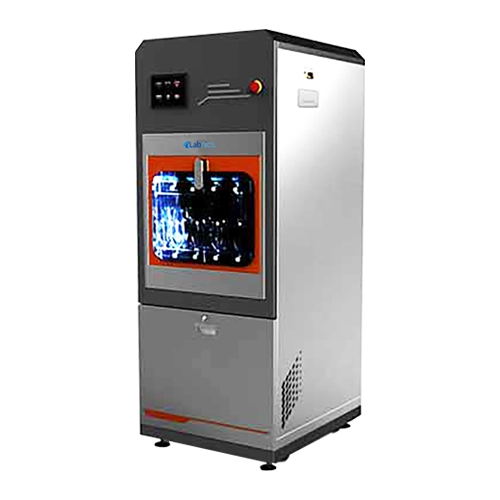

AUTOMATIC GLASSWARE WASHER NAGW-104

Automatic Glassware Washer NAGW-104 is a non-corrosive stainless-steel cleaning system with an in-build self-cleaning program that provides superior cleaning and disinfection of glassware. It is designed with independent air heater, results in rapid, efficient and thorough drying of glassware. All the operations are efficiently monitored using the PLC touch screen and reduce some dangers associated with manual cleaning, such as broken glass and exposure to hazardous substances. Heavy-duty, reliable pumps ensure a high flow rate of water and effective yet gentle water spray pressure for better and faster cleaning results. Glassware washers are common equipment in many biological labs for quick and effective disinfection of glassware.

FEATURES

⇋ Washing and drying temperatures can be adjusted manually
⇋ Self-cleaning chamber with rounded edges ensures no build-up of dirt
⇋ Electronic safety lock system
⇋ Optional USD and printer interface
⇋ 6 preset programs, one customized program setting available
⇋ Dual control system to monitor washing and drying temperature
⇋ Reinforced glass window allows easy viewing of the washing process

SPECIFICATIONS

Capacity	420 L
Water Consumption / Cycle	25 L
Material	Stainless Steel
Washing Racks Load	2
Inlet Water Pressure	0.3 – 0.8 MPa
Noise Level	≤ 60 dB
Power Consumption	20 kW
Power Consumption (Water Washing)	2.8 kW
Power Consumption (Water Heating)	17 kW
Power Consumption (Drying)	3.6 kW
Water Temperature Range	Up to 99°C
Heated Air Temperature	Up to 120°C
Washer Chamber Dimension (W × D × H)	688 × 700 × 703 mm
External Dimension (W × D × H)	1100 × 900 × 1950 mm
Power Supply	AC 110V /220 V ,50/60 Hz
Weight	400 kg

APPLICATIONS

It is commonly used in laboratories that require bulk cleaning and disinfecting of glassware such as microbiological labs, pathology labs, pharmaceutical labs, etc.

STANDARD ACCESSORIES

Accessories No	Name
1	Standard rack (36 of 10-250ml volumetric flasks, conical flasks or beakers of diameter within 90mm)
2	RBSA150 liquid detergent
2	RBS A375 neutralizer

OPTIONAL ACCESSORIES

Accessories No	Name
1	Rack No.1 (30 of infusion bottles & caps, volumetric flasks, conical flasks or beakers)
2	Rack No.2 (56 of 10-250ml volumetric flasks, conical flasks or beakers of diameter within 60 mm)
3	Rack No.3 (109 of sample bottles/test tubes & maximum 18 of 10-250ml volumetric flasks, conical flasks or beakers of diameter within 90mm)
4	Rack No.4 (Washes beakers & other wide mouth bottles, washing area of 560x510mm)
5	Rack No.5 (Upper rack, washes 75 of petri dishes or caps within diameter of 90mm)
6	Rack No.6 (Lower rack, washes 75of petri dishes or caps within diameter of 90mm)
7	Rack No.7 (26 of transfer pipettes of length less than 550mm as well as beakers or other wide mouth bottles, washing area of 510x280 mm)
8	Rack No.8 (20 of rubber tubes with inner diameter of 3~8mm and length less than 3m)
