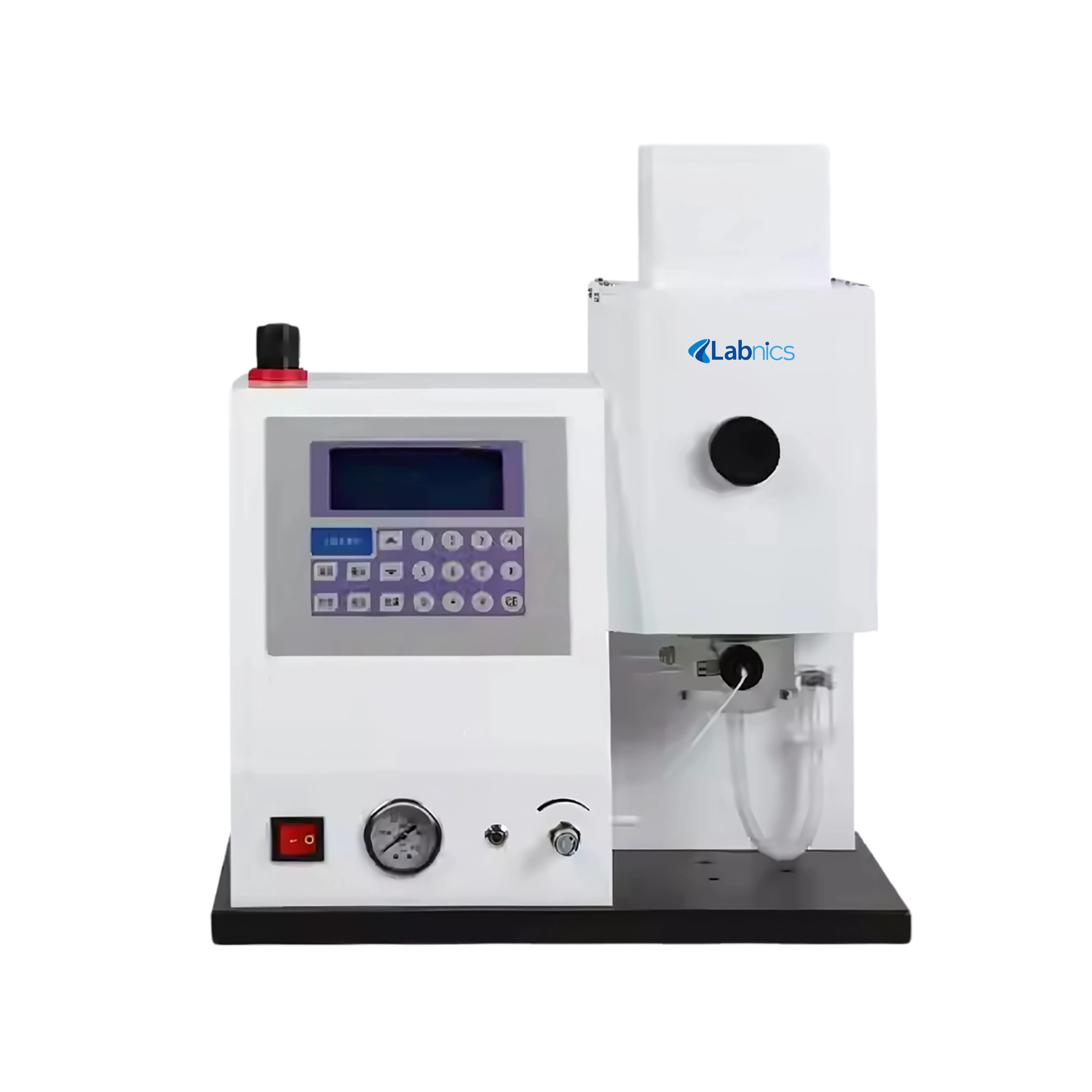

Flame Photometer NFP-101 Catalog

Flame Photometer NFP-101 uses the flame color and excitation wavelengths of metal ions like K and Na to calculate their concentration in a test sample. It is a flame out protection device as it consists of an ore select function for flame size and an LPG burning gas. The analysis can be made on LCD screen display and a touch screen panel with numerical keypad.

FEATURES

⇋ With auto correction coefficient calculating function
⇋ Easy adjustable relief valve for direct viewing of the pressure gauge
⇋ With ore-select function for flame size and a mist separator
⇋ A flame out protection function
⇋ Allows single point calibration
⇋ Calibration curve can be saved
⇋ RS232 interface, can connect with external printer
⇋ LCD screen display and touch screen panel with numerical keypad

SPECIFICATIONS

Testing Elements	K, Na
Display	Concentration value
Element Display Channels	Max. 3 channel
Data Range	0.000~999
Measurement Range	K: 0-100ppm, Na: 0-160ppm
LOD (In ppm)	K: 0.1ppm Na: 0.1pp
Linear Error	K: 0.2ppm Na: 0.5ppm
Response Time	<8seconds
Minimum Suction Volume	＜6mL∕min
Stability	The biggest change in the relative volume in 15s: ≤3
Repeatability	Repeat 7 consecutive independent measurements on the same standard solution ≤ 3%
Fuel	LPG gas
Power Consumption	250 W
Power Supply	AC 220V±22V 50Hz±1Hz
Working Temperature	10°C -35°C
Relative Humidity	≤ 85% RH
Package Size	80x47x60cm (carton)
Gross Weight	23.6 Kg

APPLICATIONS

It has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries.

STANDARD ACCESSORIES

Air compressor

2.5m PU pipe for air road

0.6m Silicone tube

Funnel parts

Glass cylinder

Capillary

2 pcs fuse

Power cable
