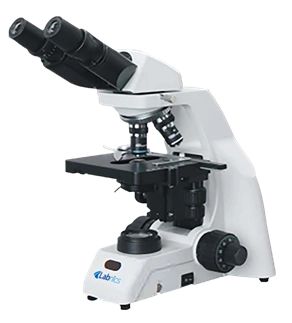

BIOLOGICAL MICROSCOPE NBM-102

Biological Microscope NBM-102 is a bright field, upright type optical microscope that enables microscopic examination of cells which are invisible to naked eyes. It is a bright field, LED ergonomic microscope designed to visualize various biological specimens with precise focusing system.

FEATURES

⇋ Ergonomic body with rigid frame and handle
⇋ Long shelf-life white LED lamp/halogen lamp illuminator
⇋ Nosepiece equipped with revolver and rotation on ball bearings
⇋ Adjustable brightness controller fitted on the base of a microscope
⇋ Better focusing mechanism with coaxial positioning system
⇋ Roller and guider movement (Roller and pinion)
⇋ Coarse and fine focusing knobs with rubber grip
⇋ Upper limit stopper preventing damage to the lens and sample while observation

SPECIFICATIONS

Optical System	Finite Optical System
Eyepiece	WF10X/18
Viewing head	Seidentopf Trinocular Head inclined at 30˚C
Achromatic Objectives-1	4X N.A = 0.1 WD =18
Achromatic Objectives-2	10X N.A = 0.25 WD =7
Achromatic Objectives-3	40X N.A =0.65 WD =0.53
Achromatic Objectives-4	100X N.A =0.1 WD =0.13
Nosepiece	Backward Quadruple Nosepiece
Stage	Double Layers Mechanical Stage 140x140mm
Condenser	NA 1.25 Abbe Condenser
Illumination	S-LED Illumination
Net weight	10kg

APPLICATIONS

Biological Microscope NBM-102 is widely used for microscopic examination of biological specimens, test samples in healthcare and Research organizations, Industries, agriculture and biotechnological laboratories, food processing and developmental studies etc.
