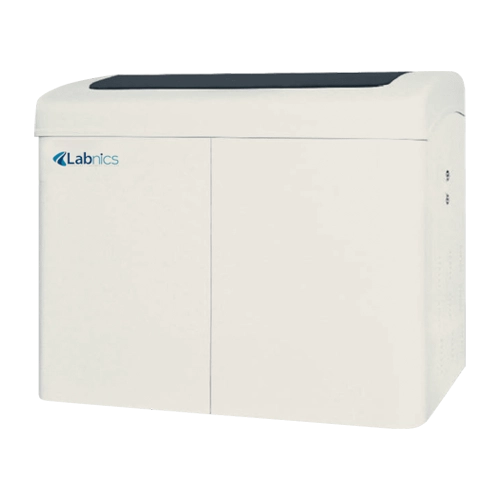

AUTOMATIC BIOCHEMISTRY ANALYZER NABA-101

Automatic biochemistry analyzer NABA-101 is clinical testing equipment intended to screen the blood, serum, and other fundamental body fluids for assessment of the basic biochemical components. It is featured with completely automated system synchronizing activity of dilution chamber, reaction cell and washing station. The multilevel monitoring of the entire operation is enabled by an audiovisual alarm.

FEATURES

⇋ Concave grating system for selection of optimized light wavelength
⇋ Stereoscopic collision protection of sample and reagent probe
⇋ Featured with Single or multipoint calibration system
⇋ Washing station unit to avoid sample contamination
⇋ Two separate reagent chambers with independent refrigerators
⇋ Multiple biochemical assays are performed
⇋ Automatic alarm for monitoring process
⇋ Feasible software for data processing and reviewing

SPECIFICATIONS

Throughput-includes ISE	760 tests/ hr.
Throughput-includes biochemical test only	600 test/ hr.
Sample capacity	1 x 100 primary tube or micro serum cup
Sample volume	1.0 µL to 100 µL in .01 µL/ step
Reagent volume	1 µL to 500 µL in 0.1/ step
Reagent tray	2 reagent strays, barcode scanner available (on request)
Reagent refrigerator	2 °C to 8 °C, 24 hrs. available
Reading cuvette	160 cuvettes
Reaction volume	Minimum 120 µL
Reaction disc temperature	37 °C ± 0.1 °C
Carry- over	Less than 0.0005 %
Wavelength range	340 nm to 810 nm
Power supply	AC 110 V / 60 Hz 220 V / 50 Hz
Dimensions	1200 x 900 x 1100 mm

APPLICATIONS

It is widely used for the analysis of various biological components for diagnosing impaired organ functioning or disordersin fields such as pathology, medical microbiology, and research purposes.
