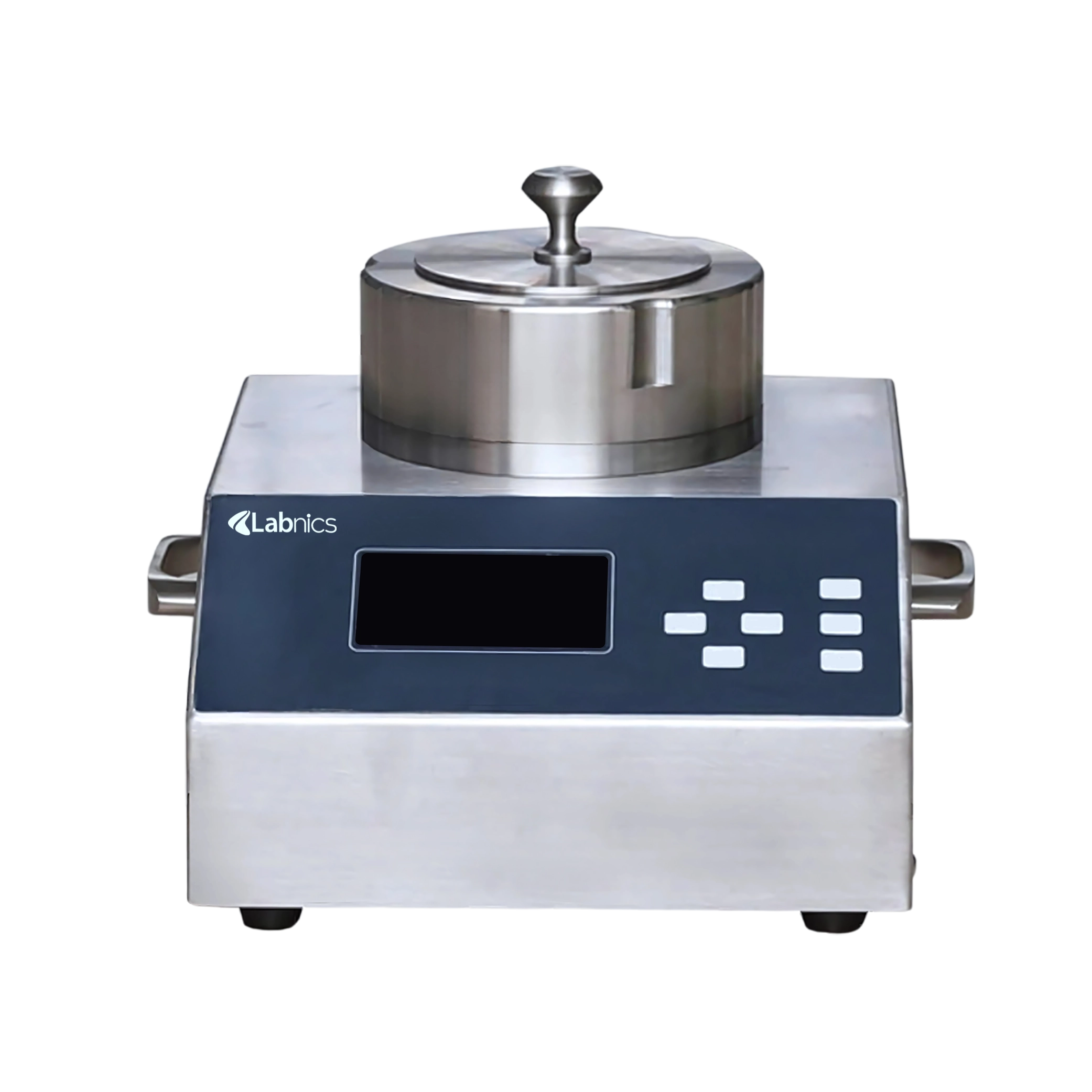

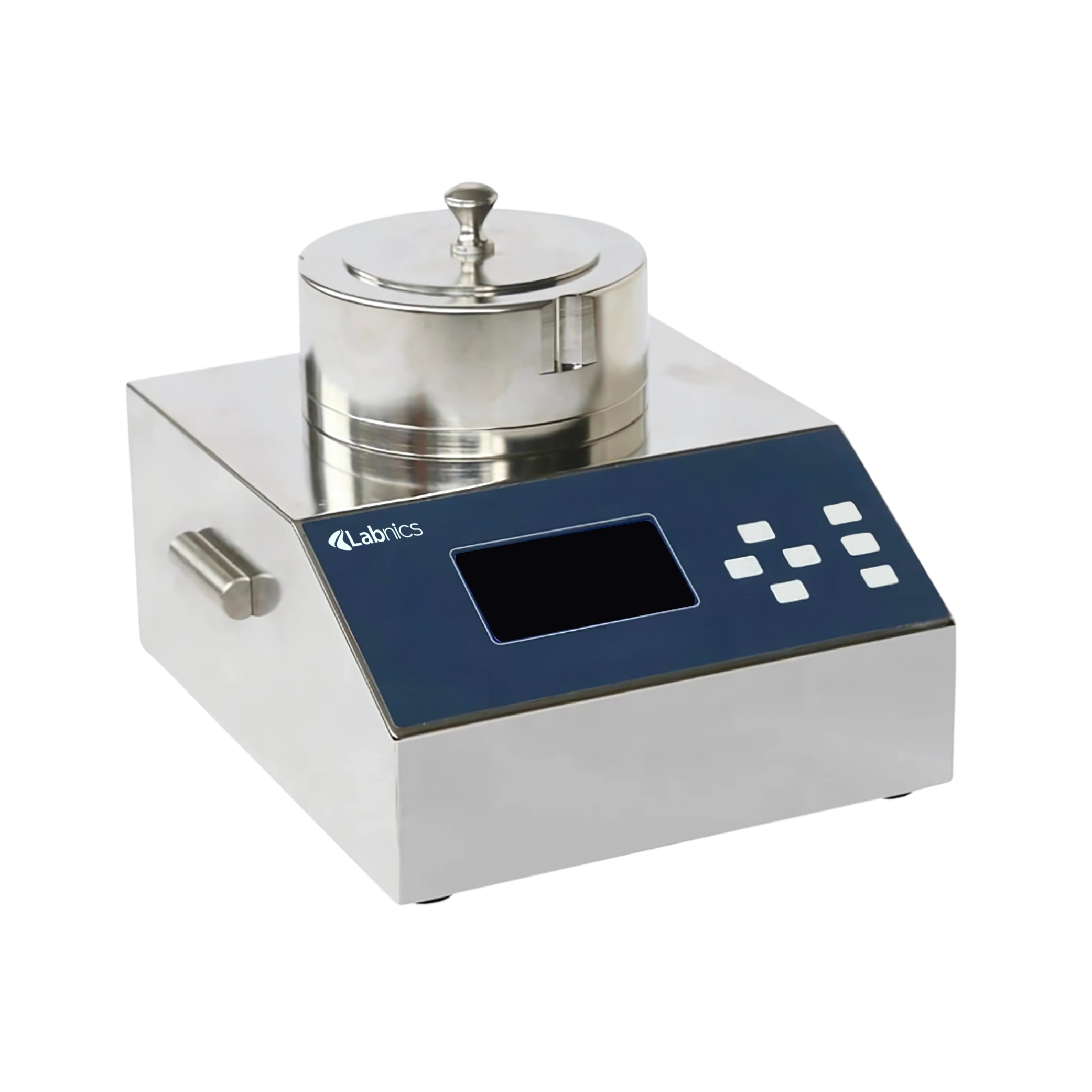

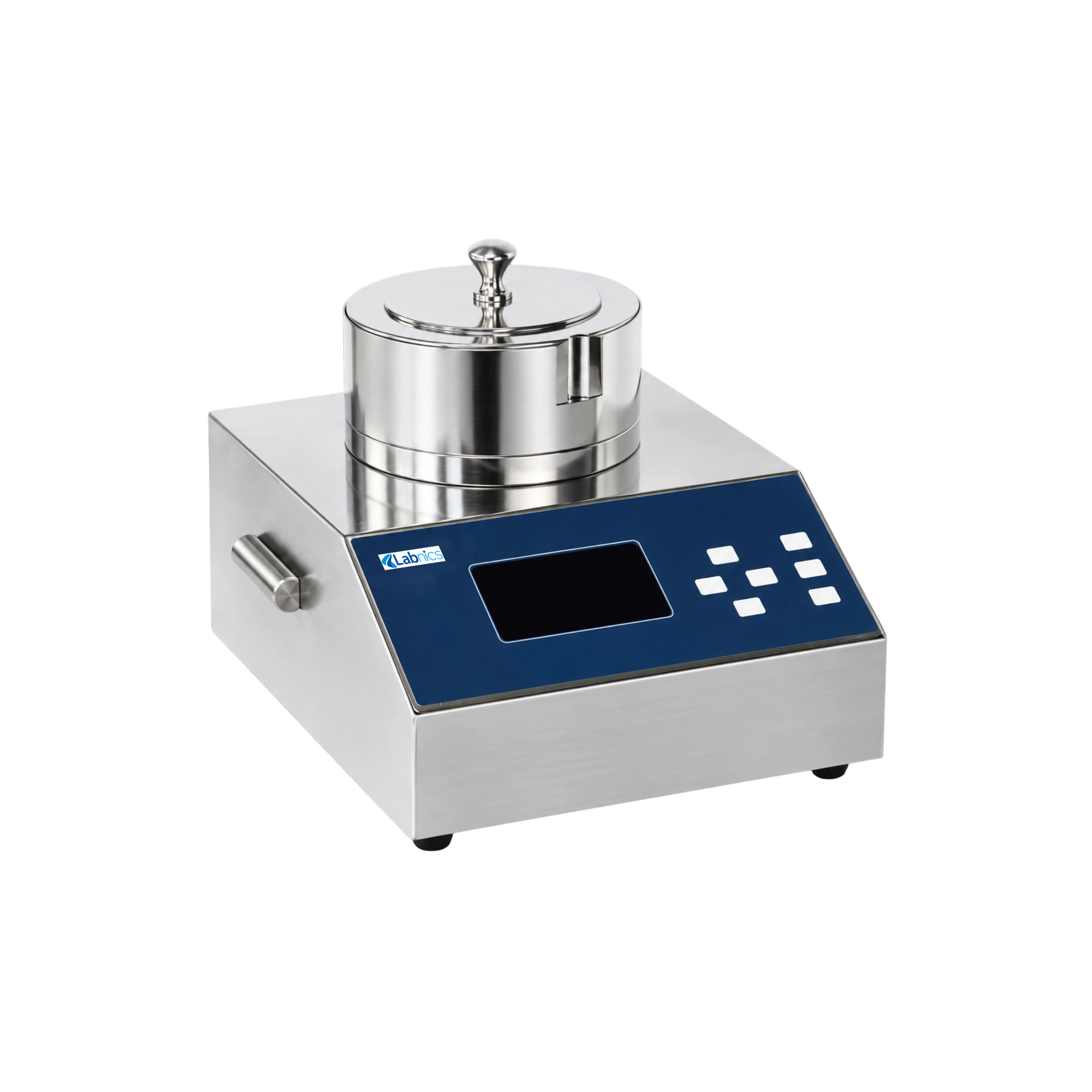

Microbial Air Sampler NMAS-202 is a highly efficient microorganism sampler and type of planktonic bacteria sampler in the microporous suction collector. It is designed on the principle of kinetic sampling. It can sample directly, and the velocity of the sampling port and the Cleanroom is consistent, so it can accurately reflect the microorganism concentration of the Cleanroom. In the sampling process, bio contaminated air is drawn through the small holes in the top plate. The system is designed to ensure biological efficiency by optimizing the striking velocity.
Specifications
| Sampling flow | 100 L / min |
| sampling head | 316 stainless steel |
| Sampling mode | Three block design, can be customized sample volume |
| Sampling quantity | 0.001 to 9.999 m3 |
| Sampling head velocity | 0.38 m/s |
| Petri dish | Ø 90 × 15 |
| Dimension | 200 × 240 × 150 mm |
| Sampling head size | Ø 120 × 60 |
| Temperature | 30 ± 5 |
| Relative humidity | 70 % RH ± 10 % |
| Display window | LCD |
| Power Supply | AC 220 V, DC 14.8 V |
| Weight | 4 kg |
Features
Applications
Ask Expert
| Temperature range | 10 to 55°C |
| Relative humidity range | 10 to 90% RH |
| Atmospheric pressure range | 80 to 110 kPa |
| Sampling quantity | 3.53 FM / min |
| Speed of sampling hole | <0.4m>/s, basically the same as that of clean room (isokinetic sampling) |
| Speed crash | 16 m/s |
| Flow range | 0 to 200 L/min |
| Flow resolving power | 1 L/min |
| Flow accuracy | ± 2.5 % |
