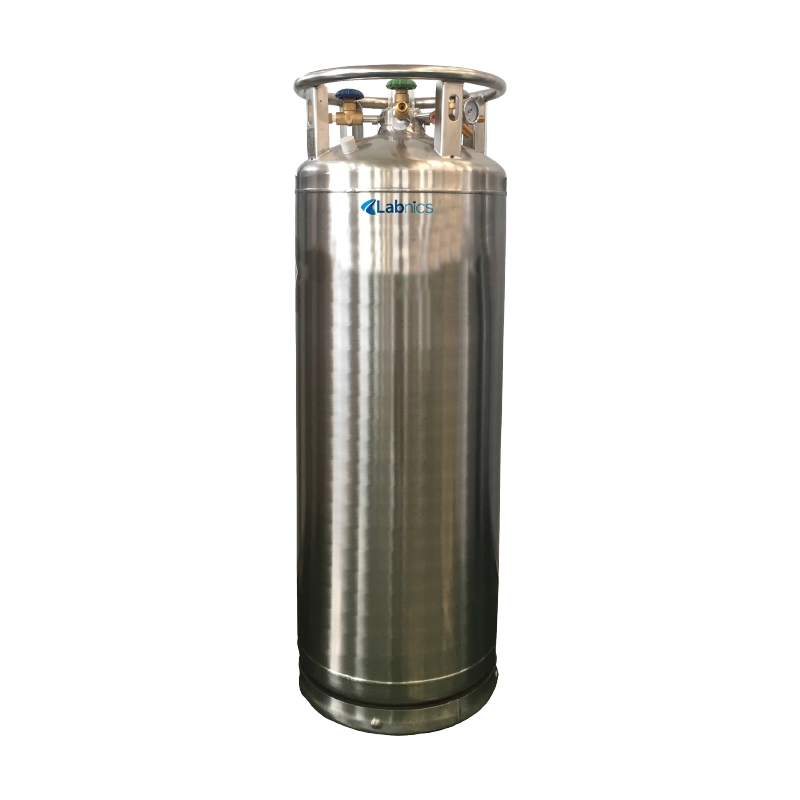

Liquid Nitrogen Dewar NLND-200

Liquid Nitrogen Dewar NLND-200 is durable, vaccum-insulated stainless steel cryogenic container with multi-layer thermal insulation that helps store and transport cryogenic liquid oxygen, nitrogen or argon. It features lockable lid that provides protection and sample isolation. These systems are are capable of providing continuous flow rates of up to 9.2 cu.m/h. These containers are ideal for transporting biological samples at cryogenic temperature while preserving sample integrity.

Get Quote Download Catalog

Specifications

Working Pressure	1.4 Mpa
Pressure Relief Valve	1.59 Mpa
Inner Container Bursting Disc	2.60 Mpa
Maximum Liquid Capacity	175 L
Usable Liquid Capacity	166 L
O2 Filling Capacity	172 kg
N2 Filling Capacity	121 kg
Argon Filling Capacity	208 kg
Natural Gas Filling Capacity	70.1 kg
CO2 Filling Capacity	138 kg
N2O Filling Capacity	191 kg
Dimensions (D×H)	508 × 1500 mm
Tare Weight	110 kg

Features

✔ Compact but rugged design in order to minimize space requirements
✔ Low static evaporation due to advanced vacuum insulation, more economical
✔ Paired with heavy duty stainless steel wheel for easy transport
✔ Convenient fill/withdrawal mouth opening

Applications

Employed in farming, medical treatment, scientific research such as in biological engineering and medical sanitation for storing the active biological materials such as the breeding livestock's semen and embryos, vaccines, genes and dry cell.
