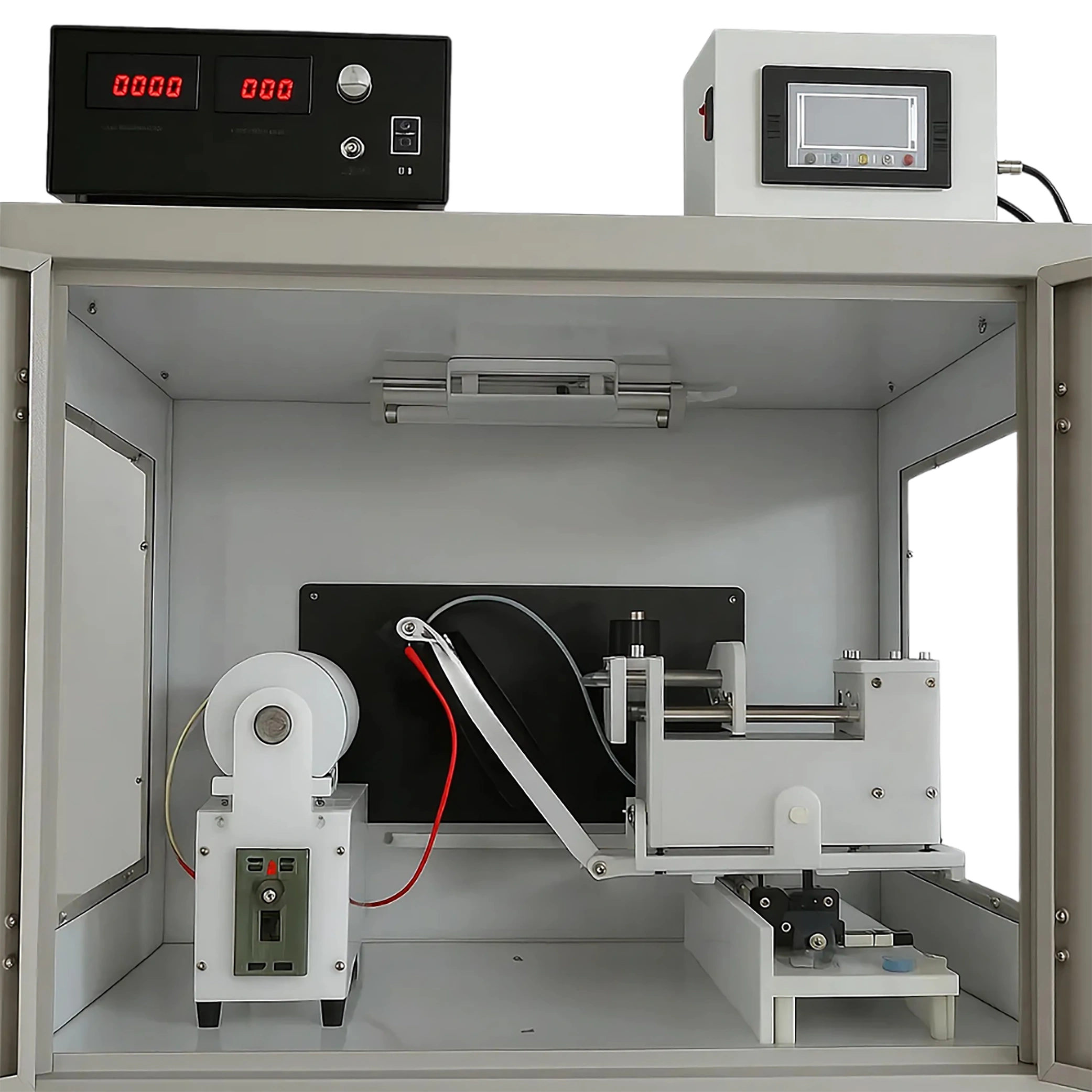

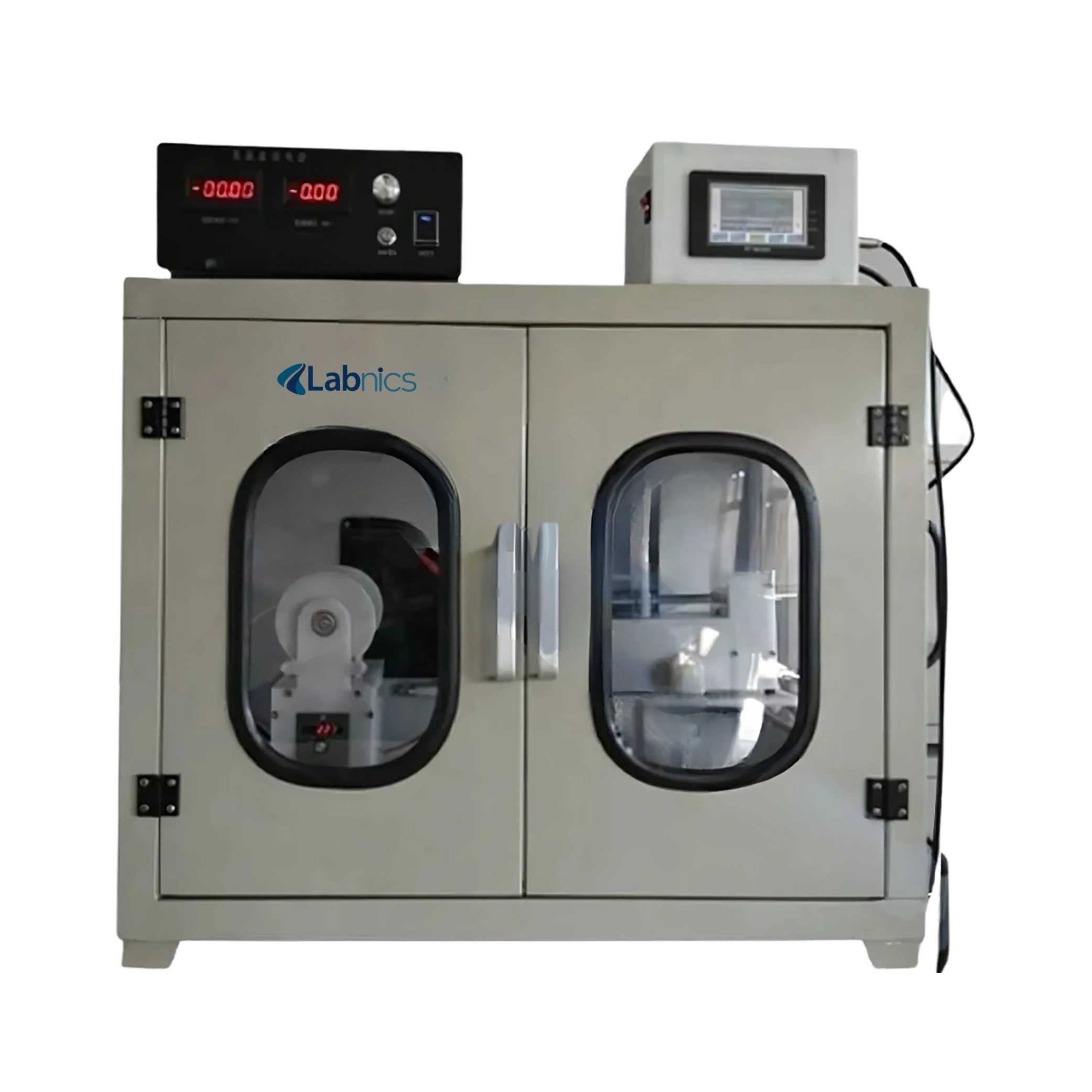

Electrospinning Machine NESM-100

The electrospinning machine NESM-100 is equipped with a one-dimensional nanofiber preparation technology which has the positive high voltage of high the advantages of simple manufacturing equipment, low spinning cost, various types of spinnable polymers, and controllable spinning process.

Get Quote Download Catalog

Specifications

Propulsion system	Applicable syringes: 1ml, 5ml, 10ml, 20ml, 30ml, 50ml, 100ml: 3 card slots (can put 3 syringes): dual channel push pump
Sprinkler system	Nozzle bracket 3 holes, adjustable for height, any angle, and distance from receiving pole
Single nozzle inner diameter	0.1-1.6mm
Nozzle moving device Moving distance	0~200m
precision speed regulation (digital display)	1~1500 mm/min
Rotation speed High speed	120-3000rpm
Precision	1r/min
Plate collector	Size: 20*20cm: release sticker (easy to take film)
Cabinet Metal	shell + anti-corrosion coating + insulating inner wall + three-sided observation window exhaust system
Lighting system	Easy to observe spinning with naked eyes
Power supply	220V
Positive high voltage	0-30KV
Negative high voltage	0-10KV
Dimensions	800mm× 600 mm × 700mm
Net weight	35kg

Features

✔ Easy to observe spinning with naked eyes
✔ Insulating inner wall
✔ Three-sided observation window exhaust system
✔ Anti - corrosion coating
✔ Low spinning cost

Applications

Electrospinning machine is widely used to produce nano scale fibers both in laboratory and industrially. Because of its wide application such as medicine, filtration, textile, etc.
