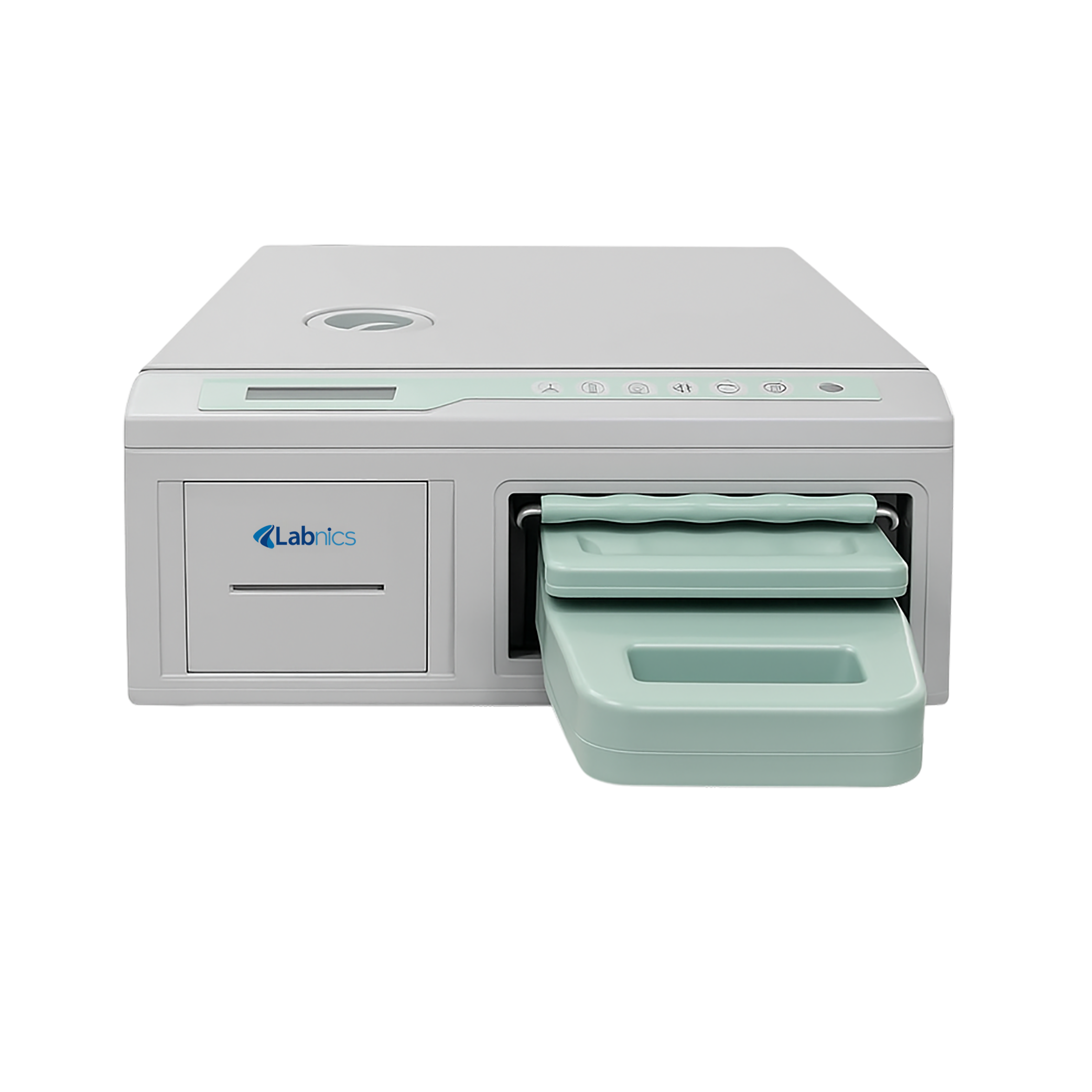

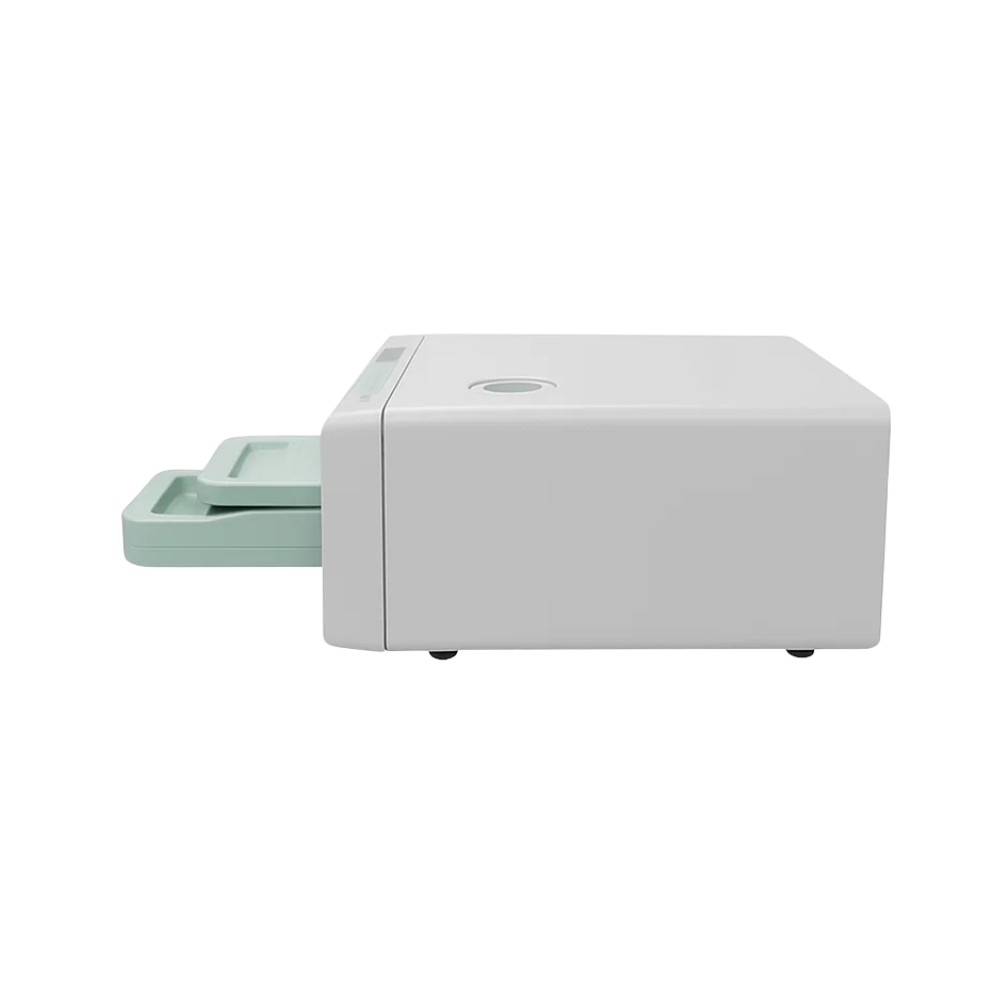

Cassette Autoclave NCAC-100
Cassette Autoclave NCAC-100 offers an organized way to sterilize several medical equipment in a single cassette. Safety is paramount with built-in interlocks and real-time monitoring. Harnessing the power of steam autoclaving, it ensures rapid and effective sterilization, complemented by user-friendly controls and quick turnaround times.
Chamber volume | 6 L |
Sterilization temperature | 115 ℃ to 135 ℃ (Selectable) |
Ambient temperature | 5 to 40 ℃ |
Working pressure | 42 kPa to 212 kPa |
Water tank volume | 3.4 L |
Chamber material | SUS304 |
Power supply | AC 220 V, 50 Hz |
Internal dimension (W×D×H) | 280 × 180 × 38 mm |
External dimension (W×D×H) | 570 × 415 ×170 mm |
Packaging dimension (W×D×H) | 700 × 580 ×590 mm |
Net weight | 41 Kg |
Gross weight | 59 Kg |
Cassette Autoclave is used for sterilization of medical instruments across sectors like medical, veterinary medicines, pharmaceuticals, food, academic institutions, etc.
Sterilizer box
Capacity | 150 L |
Body | 304 Stainless Steel |
Chamber Volume | ∮ 440 × 1000 mm |
Working Pressure | 0.22 Mpa |
Capacity | 200 L |
Body | 304 Stainless Steel |
Chamber Volume | ∮ 515 × 1000 mm |
Working Pressure | 0.22 Mpa |
Capacity | 280 L |
Body | 304 Stainless Steel |
Chamber Volume | ∮ 600 × 1000 mm |
Working Pressure | 0.22 Mpa |
Capacity | 400 L |
Body | 304 Stainless Steel |
Chamber Volume | ∮ 700 × 1100 mm |
Working Pressure | 0.22 Mpa |
Capacity | 500 L |
Body | 304 Stainless Steel |
Chamber Volume | ∮ 700 × 1300 mm |
Working Pressure | 0.22 Mpa |
Capacity | 150 L |
Body | Stainless Steel |
Type | Pressure Steam Sterilization |
Chamber Volume | Φ 440 × 1000 mm |
Capacity | 20 L |
Body | 304 Stainless-steel |
Type | Front loading |
Chamber volume | ∮ 250 × 420 mm |
Capacity | 24 L |
Body | 304 Stainless-steel |
Type | Front loading |
Chamber volume | ∮ 250 × 520 mm |
Capacity | 35 L |
Body | 304 Stainless-steel |
Type | Front loading |
Chamber volume | ∮ 300 × 500 mm |
Capacity | 50 L |
Body | 304 Stainless-steel |
Type | Front loading |
Chamber volume | ∮ 340 × 550 mm |
Capacity | 45L |
Working Temperature | 134℃ |
Working Pressure | 0.22 Mpa |
Maximum Temperature | 139℃ |
Capacity | 35 L |
Body | 304 Stainless Steel |
Door | Wheel-type, Quick-open door |
Chamber Volume | ∮ 318 × 450 mm |
Capacity | 75 L |
Body | 304 Stainless Steel |
Door | Wheel-type, Quick-open door |
Chamber Volume | ∮ 400 × 600mm |
Capacity | 100 L |
Body | 304 Stainless Steel |
Door | Wheel-type, Quick-open door |
Chamber Volume | ∮ 440 × 650mm |
Capacity | 120 L |
Body | 304 Stainless Steel |
Door | Wheel-type, Quick-open door |
Chamber Volume | ∮ 480 × 660mm |
Capacity | 150 L |
Body | 304 Stainless Steel |
Door | Wheel-type, Quick-open door |
Chamber Volume | ∮ 510 × 740mm |
Capacity | 50 L |
Chamber Dimension | Φ 340 × 550 mm |
Working Pressure | 0.23MPa |
Designed Pressure | 0.28Mpa |
Capacity | 18 L |
Chamber Volume | ∮ 280 × 260 mm |
Working Pressure | 0.14 - 0.16 Mpa |
Working Temperature | 126 °C |
Capacity | 24 L |
Chamber Volume | ∮ 280 × 390 mm |
Working Pressure | 0.14 - 0.16 Mpa |
Working Temperature | 126 °C |
Capacity | 250 L |
Working Pressure | 0.00 to 3.50 bar |
Working Temperature | 100℃ to 135℃ |
Holding Time | 05 min to 30 min |
