Automatic Potentiometric Titrator NAPT-104

Automatic Potentiometric Titrator NAPT-104

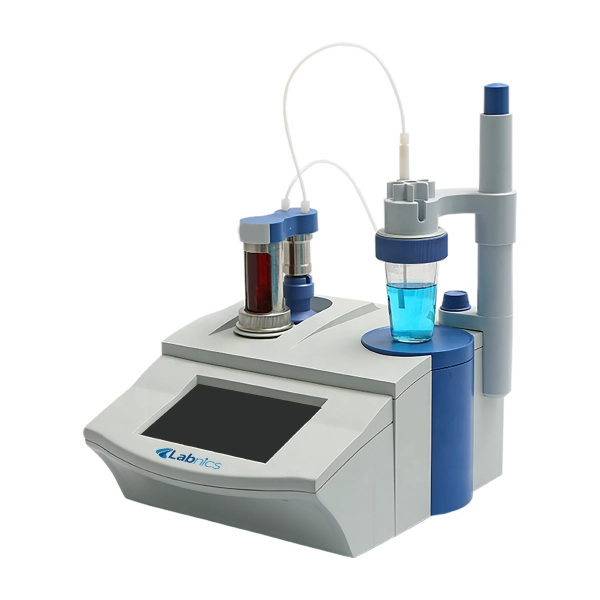

Automatic Potentiometric Titrator NAPT-104 is compact, automated titration device to determine the concentration of the target substance in solution by reacting it with a measured amount of another chemical. It performs simple routine laboratory titrations and eliminates any kind of manual error. Adopting a modular design, it is easy to operate with quick results and high precision and accuracy.


Catalog

Specifications

Measuring Range (-1999.0~1999.0) mv; (0.00~14.00) pH
Measuring Resolution 0.1mV; 0.01pH
Measuring Accuracy pH: ± 0.01 pH; mv: ±0.03% FS
Measuring Fluctuation (± 0.3mV ±1bit) /3h
Temperature range (-5.0~105.0) ℃
Temperature Resolution 0.1℃
Temperature Accuracy ± 0.3℃
Burette Accuracy 10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml
Burette Resolution 10ml Burette: 1/20000; 20ml Burette: 2/10000
Burette Repeatability 0.002
Supplementary Burette Speed 55 ± 10s (when burette is full scale)
Resolution of Drive 1/30000
Titration Sensitivity ±2 mV
Power Supply AC 110V/ 220V ± 10%, 50/60HZ
External Dimension (W× D ×H) 340 × 400 × 400 mm
Net Weight 10 kg

Features

  • 7-inch colour touchscreen with smart guide system and display of titration methods, curves and results in detail
  • Pre-installed burette (10 ml or 20 ml selectable) with high-accuracy
  • Supports DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Pre-set Endpoint Titration) and MAT (manual titration) titration methods
  • pH calibration and measurement along with 100 user-defined methods, 10 user-defined shortcuts and data storage of 200 titration sets (GLP-compliant)
  • Auto calculation with pre-defined formula with data analysis for user review
  • Equipped with RS-232 communication interface for data transfer and computer control and can be connected to external printer
  • Extra burette driver can be installed (optional)

Applications

  • It is widely used for macro titration, micro titration, volume setting titration, EP, etc. in Chemical and Pharmaceutical, Dairy, Biotechnology, Fertilizer, Petrochemicals, Waters, Dyes, Paints, Food & Beverage industries as well as in Oil distilleries.

Standard Accessories

Accessories No Name
1 10ml Burette
2 Platinum Electrode
3 Silver Electrode
4 pH Electrode (indicator)
5 Single Bridge Reference Electrode
6 Double Bridge Reference Electrode
7 pH Buffer Powders (4.01, 7.00, 10.01)
8 ATC Probe

Optional Accessories

Accessories No Name
1 20ml Burette
2 Anti-diffusion Capillary
3 Auxiliary Burette Driver

Ask Expert

Related Models Of Automatic Potentiometric Titrator

Labnics Automatic Potentiometric Titrator supports multiple titration methods for versatile applications. They are equipped with high-accuracy burettes that ensure precise and consistent delivery of titrants. These titrators feature data analysis capabilities, enabling efficient review of results. They offer data storage with GLP-compliant features for improved traceability and record-keeping. Our units are equipped with an integrated stirrer to ensure uniform mixing.
